Description
General part information
PRT-14800

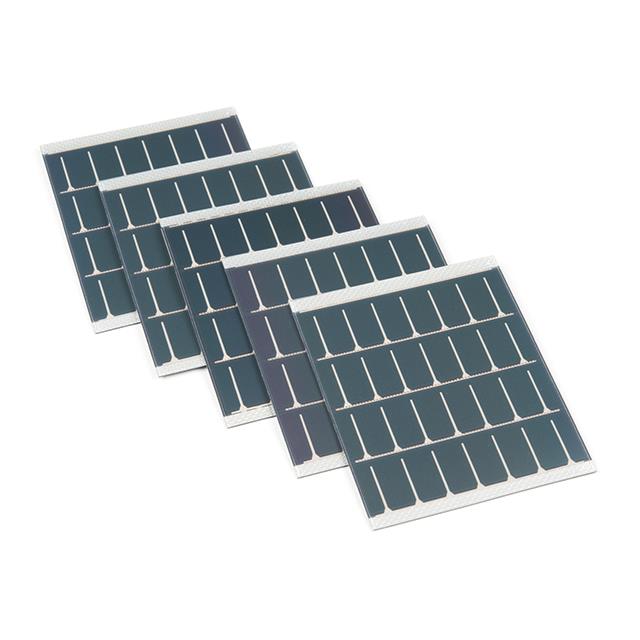

Amorphous Solar Cell 240 mW 6.4 V
Technical Specifications
Parameters and characteristics for this part
| Specification | PRT-14800 |
|---|---|
| Current | 50 mA |
| Current - Short Circuit (Isc) | 64 mA |
| Package / Case | Cells |
| Power (Watts) - Max | 240 mW |
| Size / Dimension Height | 0.022 in |
| Size / Dimension Length | 3.5 in |
| Size / Dimension Width | 2.8 in |
| Type | Amorphous |
| Voltage | 4.8 V |
| Voltage - Open Circuit | 6.4 V |
