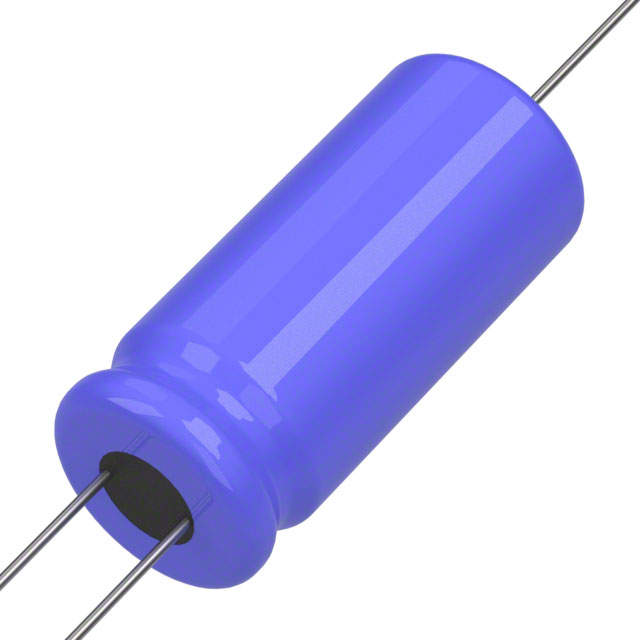

678D337M040DM3J
ActiveVishay Dale
CAP ALUM 330UF 20% 40V RADIAL TH
678D337M040DM3J
ActiveVishay Dale
CAP ALUM 330UF 20% 40V RADIAL TH
Description
General part information
678D337M040DM3J
330 µF 40 V Aluminum Electrolytic Capacitors Radial, Can 200mOhm @ 20Hz
Technical Specifications
Parameters and characteristics for this part
| Specification | 678D337M040DM3J |
|---|---|
| Applications | General Purpose |
| Capacitance | 330 µF |
| ESR (Equivalent Series Resistance) | 200 mOhm |
| Height - Seated (Max) | 1.161 in |
| Impedance | 70 mOhms |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 930 mA, 651 mA |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 40 V |
