Specification	UCOM10G+RSU

Applications	Military, Aviation, Marine
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Threaded
Features	Backshell
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	8
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Position Types	Data
Primary Material	Metal
Shell Material	Brass
Shell Size - Insert	11
Shell Size - Insert	11
Termination	Solder Cup

UCOM-10G+ Series

Part	Shell Material	Features	Termination	Mounting Type	Connector Type	Mounting Feature	Fastening Type	Contact Material	Applications	Number of Positions	Position Types	Primary Material	Contact Finish - Mating	Shell Size - Insert	Shell Size - Insert	Operating Temperature (Max)	Operating Temperature (Min)	Ingress Protection IP Rating	Ingress Protection Description	Cable Opening	Color	Shell Finish
McGill Microwave Systems UCOM10G+RCU	Brass	Backshell	Crimp	Panel Mount	Female Sockets Receptacle	Bulkhead Front Side Nut	Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof
McGill Microwave Systems UCOM-10G+ LCUGA	Brass	Backshell	Crimp	Free Hanging (In-Line)	Female Sockets Receptacle		Push-Pull Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof	0.295 in
McGill Microwave Systems UCOM-10G+ PTSUGA	Brass	Backshell	Solder Cup	Free Hanging (In-Line)	Male Pins Plug		Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof	0.295 in

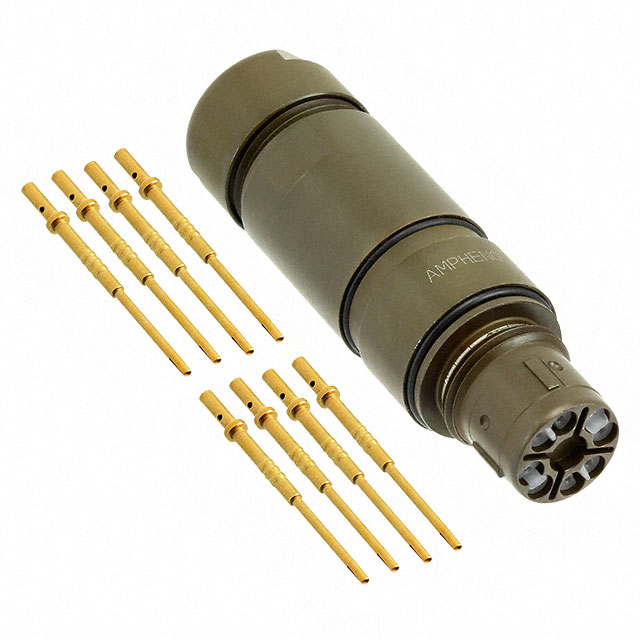

McGill Microwave Systems UCOM-10G+ LCGGA	Brass	Backshell	Crimp	Free Hanging (In-Line)	Female Sockets Receptacle		Push-Pull Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof	0.295 in	Olive Drab	Olive Drab Cadmium

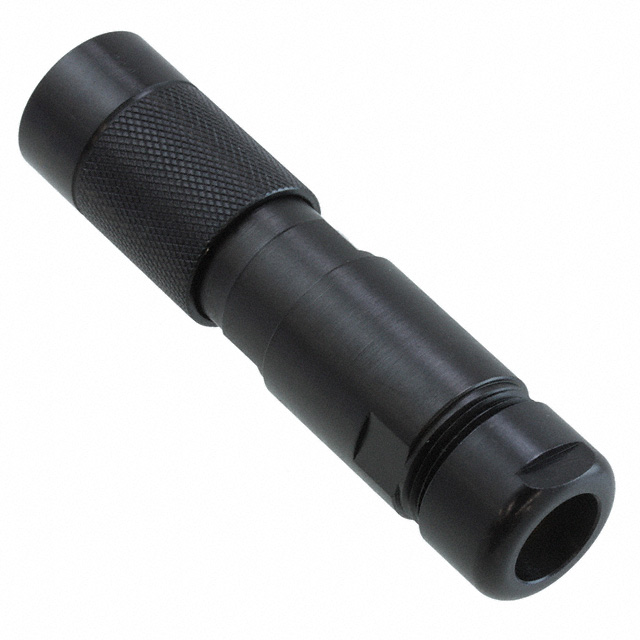

McGill Microwave Systems UCOM-10G+ PTSBGA	Brass	Backshell	Solder Cup	Free Hanging (In-Line)	Male Pins Plug		Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof	0.295 in	Black	Black Nickel

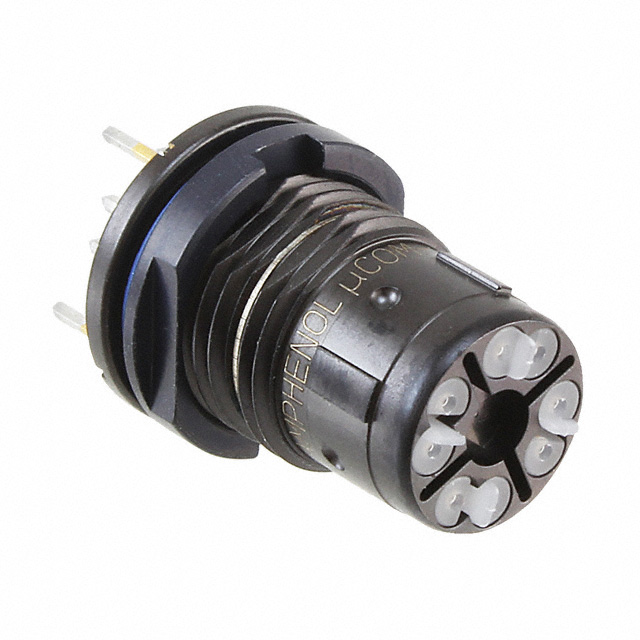

McGill Microwave Systems UCOM-10G+ RP B	Brass		Solder	Panel Mount Through Hole	Female Sockets Receptacle	Bulkhead Front Side Nut	Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof		Black	Black Nickel

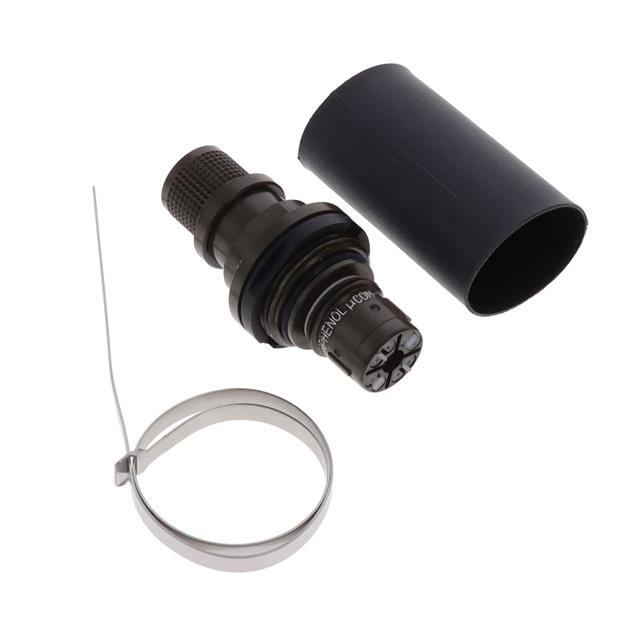

McGill Microwave Systems UCOM10G+RSG	Brass	Backshell	Solder Cup	Panel Mount	Female Sockets Receptacle	Bulkhead Front Side Nut	Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof		Olive Drab	Olive Drab Cadmium
McGill Microwave Systems UCOM-10G+ LCUB	Brass	Backshell	Crimp	Free Hanging (In-Line)	Female Sockets Receptacle		Push-Pull Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof

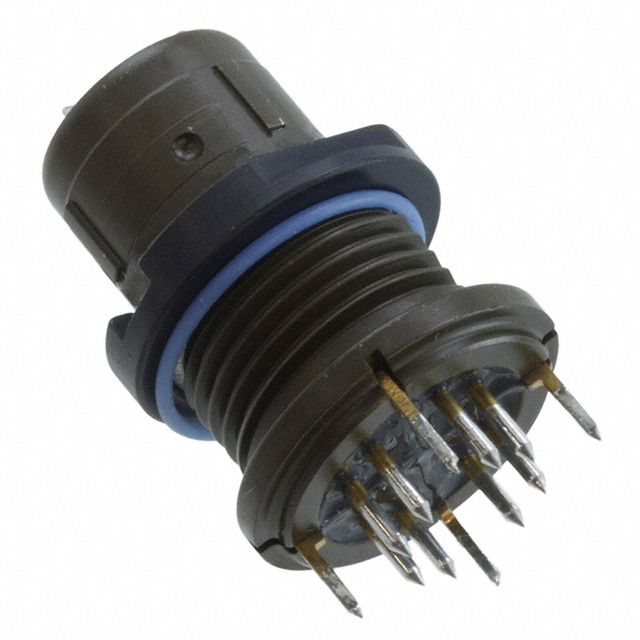

McGill Microwave Systems UCOM-10G+ RP G	Brass		Solder	Panel Mount Through Hole	Female Sockets Receptacle	Bulkhead Front Side Nut	Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof		Olive Drab	Olive Drab Cadmium

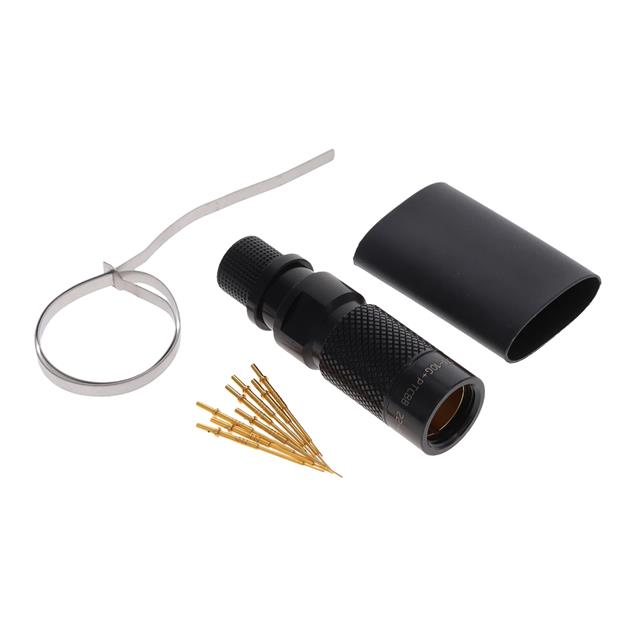

McGill Microwave Systems UCOM-10G+ PTCBB	Brass	Backshell	Crimp	Free Hanging (In-Line)	Male Pins Plug		Threaded	Brass	Aviation Marine Military	8	Data	Metal	Gold	11	11	125 °C	-55 °C	IP68	Dust Tight Waterproof		Black	Black Nickel
