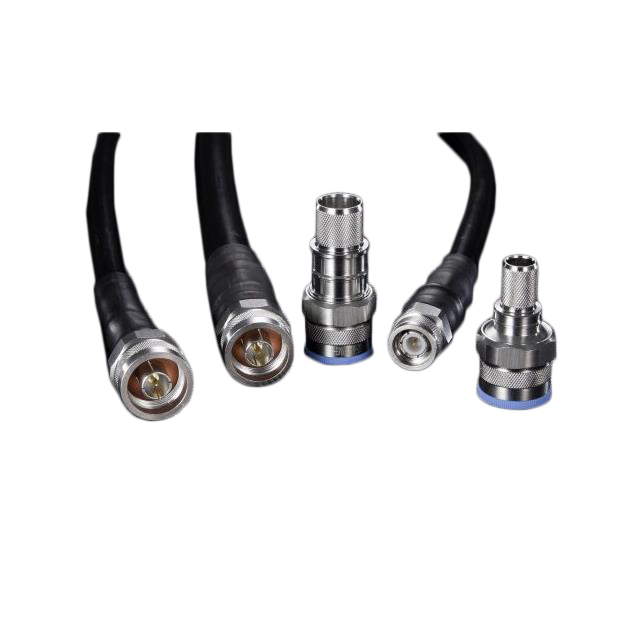

LMR-600 DB COAXIAL CABLE 50M
LMR-600-DB-50M
ActiveMcGill Microwave Systems
LMR-600 DB COAXIAL CABLE 50M
Description
General part information
LMR-600-DB-50M
Coaxial Cable LMR-600 164.0' (50.00m) 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-600-DB-50M |
|---|---|
| Cable Group | LMR-600 |
| Cable Type | Coaxial |
| Conductor Material | Copper Coated, Aluminum |
| Conductor Strand | Solid |
| Dielectric Diameter | 0.455 in |
| Dielectric Material | Foam Polyethylene (FPE) |
| Impedance | 50 Ohm |
| Jacket (Insulation) Diameter | 0.59 in |
| Jacket (Insulation) Material | Polyethylene (PE) |
| Jacket Color | Black |
| Length | 164 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Velocity of Propagation (VoP) | 85 % |
