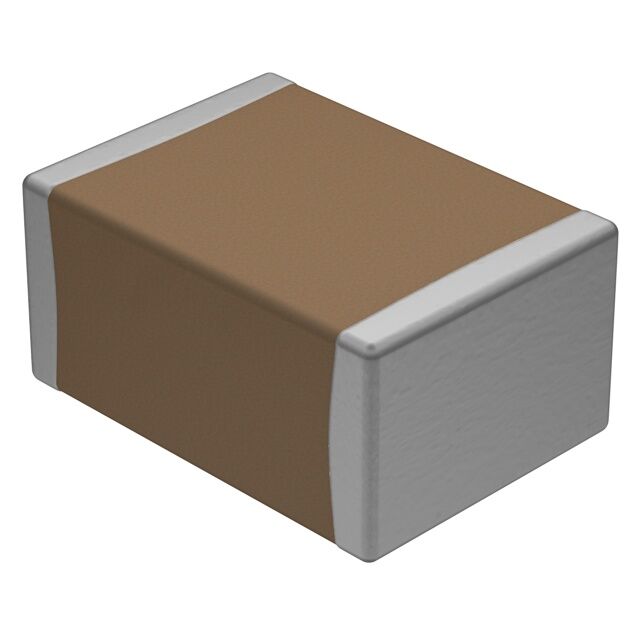

Specification	VJ1812Y103KXCAT

Applications	General Purpose
Capacitance	10000 pF
Mounting Type	Surface Mount, MLCC
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	1812 (4532 Metric)
Size / Dimension Length	0.177 in
Size / Dimension Width	0.126 in
Temperature Coefficient	X7R
Thickness (Max)	0.086 in
Tolerance	10 %
Voltage - Rated	200 VDC

VJ1812 Series

...

Part	Package / Case	Capacitance	Temperature Coefficient	Applications	Size / Dimension Width	Size / Dimension Length	Voltage - Rated	Tolerance	Mounting Type	Thickness (Max)	Operating Temperature (Max)	Operating Temperature (Min)
Vishay Dale VJ0402A151FXQCW1BC	0402 (1005 Metric)	150 pF	C0G NP0	General Purpose	0.02 in	0.039 in	10 V	1 %	MLCC Surface Mount	0.022 in	125 °C	-55 °C
Vishay Dale VJ0402Y223KXJCW1BC	0402 (1005 Metric)	0.022 µF	X7R	General Purpose	0.02 in	0.039 in	16 V	10 %	MLCC Surface Mount	0.022 in	125 °C	-55 °C
Vishay Dale VJ0805A471GXXCW1BC	0805 (2012 Metric)	470 pF	C0G NP0	General Purpose	0.049 in	0.079 in	25 VAC	2 %	MLCC Surface Mount	0.035 in	125 °C	-55 °C
Vishay Dale VJ0603Y102JXXCW1BC	0603 (1608 Metric)	1000 pF	X7R	General Purpose	0.031 in	0.063 in	25 VAC	5 %	MLCC Surface Mount	0.034 in	125 °C	-55 °C
Vishay Dale VJ0603Y392MXBCW1BC	0603 (1608 Metric)	3900 pF	X7R	General Purpose	0.031 in	0.063 in	100 VAC/DC	20 %	MLCC Surface Mount	0.034 in	125 °C	-55 °C
Vishay Dale VJ0603Y182KXJPW1BC	0603 (1608 Metric)	1800 pF	X7R	General Purpose	0.031 in	0.063 in	16 V	10 %	MLCC Surface Mount	0.034 in	125 °C	-55 °C
Vishay Dale VJ0402A1R8BXXCW1BC	0402 (1005 Metric)	1.8 pF	C0G NP0	General Purpose	0.02 in	0.039 in	25 VAC	0.1 pF	MLCC Surface Mount	0.022 in	125 °C	-55 °C
Vishay Dale VJ0603A1R2CXQCW1BC	0603 (1608 Metric)	1.2 pF	C0G NP0	General Purpose	0.031 in	0.063 in	10 V	0.25 pF	MLCC Surface Mount	0.034 in	125 °C	-55 °C
Vishay Dale VJ0805A150FXXCW1BC	0805 (2012 Metric)	15 pF	C0G NP0	General Purpose	0.049 in	0.079 in	25 VAC	1 %	MLCC Surface Mount	0.028 in	125 °C	-55 °C
Vishay Dale VJ0603Y393MXJPW1BC	0603 (1608 Metric)	0.039 µF	X7R	General Purpose	0.031 in	0.063 in	16 V	20 %	MLCC Surface Mount	0.034 in	125 °C	-55 °C
