Specification	GSFH0625

Current - Continuous Drain (Id) (Tc)	25 A, 25 A
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	P-Channel
Gate Charge (Max)	46 nC
Input Capacitance (Ciss) (Max)	3430 pF
Mounting Type	Through Hole
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C

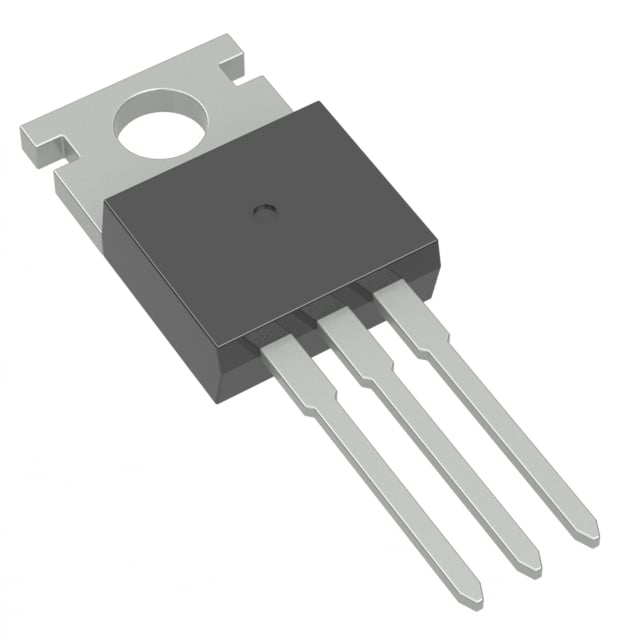

Package / Case	TO-220-3
Package Name	TO-220AB
Power Dissipation (Max)	90 W
Rds On (Max)	45 mOhm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max)	3.5 V
