PE45223
ActivePasternack
QN MALE RIGHT ANGLE SNAP-ON CONN
PE45223
ActivePasternack
QN MALE RIGHT ANGLE SNAP-ON CONN
Description
General part information
PE45223

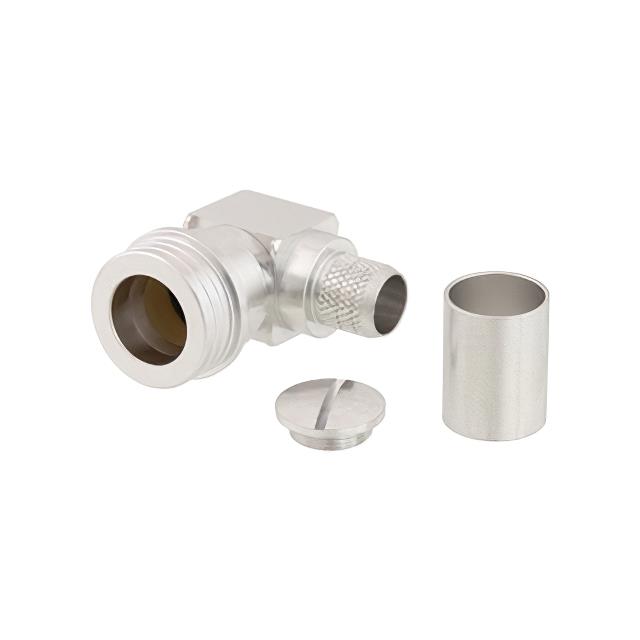

QN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45223 |
|---|---|
| Body Finish | Silver |
| Body Material | Brass |
| Cable Group | LMR-400 |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | QN |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 100 cycles |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
