2188428-2
ActiveTE Connectivity AMP Connectors

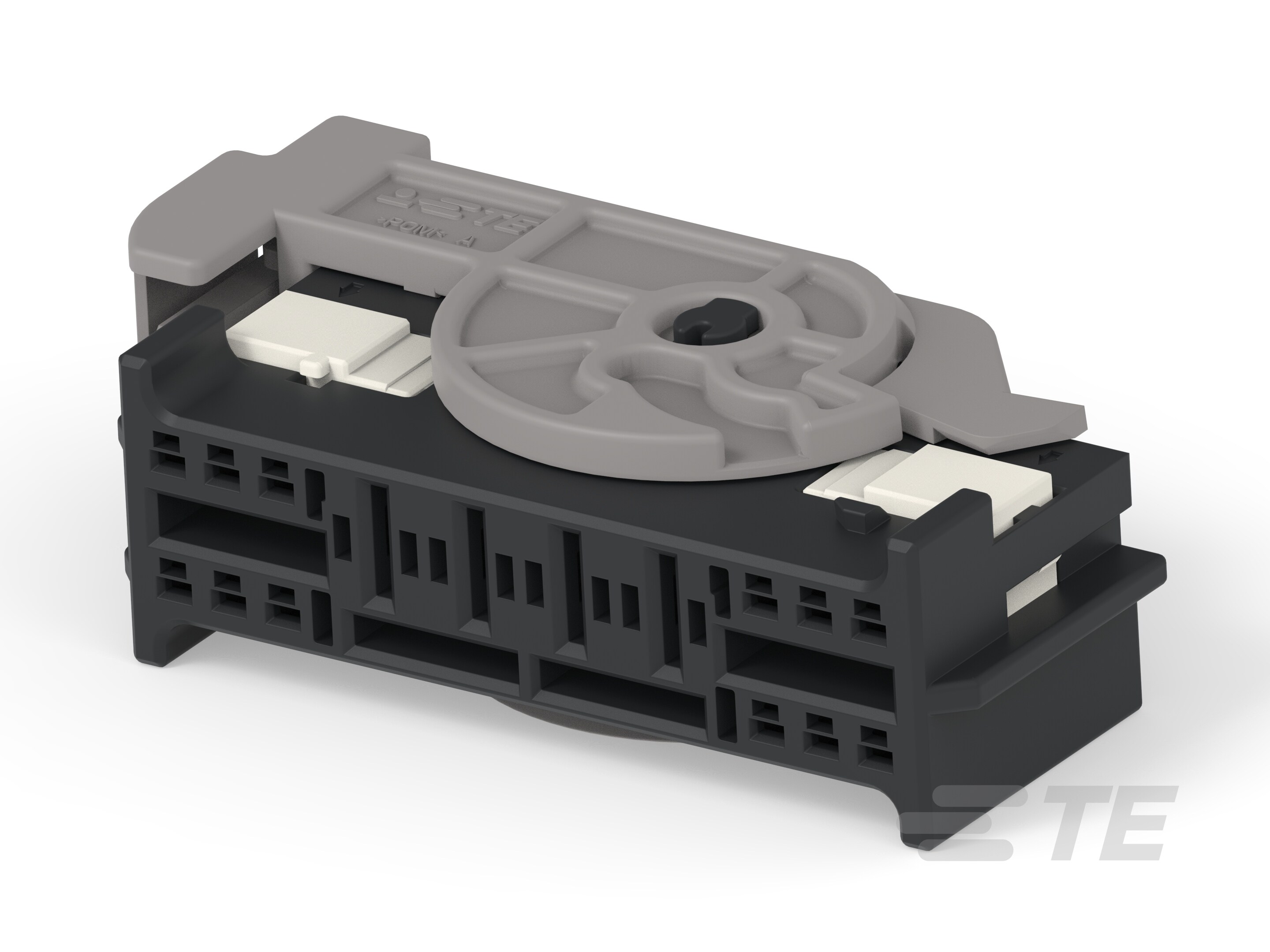

060/250 LIF HYB 16P PLUG ASSY
2188428-2
ActiveTE Connectivity AMP Connectors
060/250 LIF HYB 16P PLUG ASSY
Description
General part information
2188428-2
16 Position Housing, Housing for Female Terminals, Wire-to-Board / Wire-to-Wire, 3.5 mm / 6.2 mm [.137 in / .244 in] Centerline, Black, Wire & Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | 2188428-2 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Lever Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Row Spacing | 0.295 in |
