Description
General part information
SEN-10530

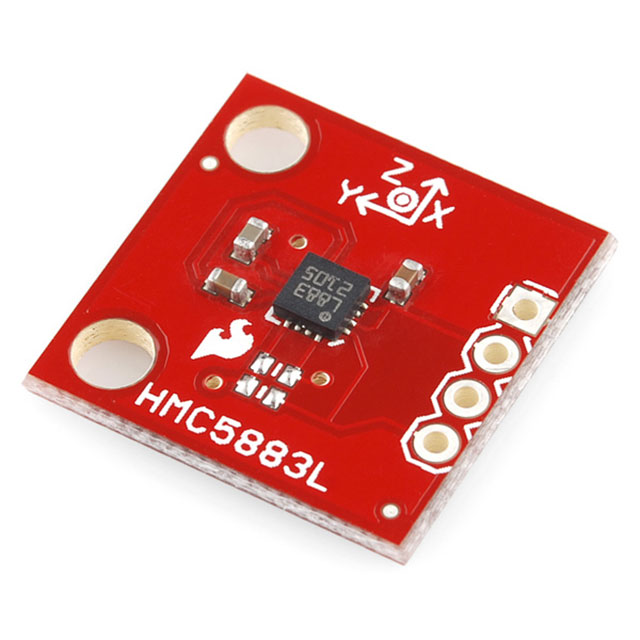

HMC5883L - Magnetic, Digital Compass Sensor Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | SEN-10530 |
|---|---|
| Interface | I2C |
| Sensing Range (Max) | 8 G |
| Sensing Range (Min) | -8 G |
| Sensor Type | Magnetic, Digital Compass |
| Supplied Contents | Board(s) |
| Utilized IC / Part | HMC5883L |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
