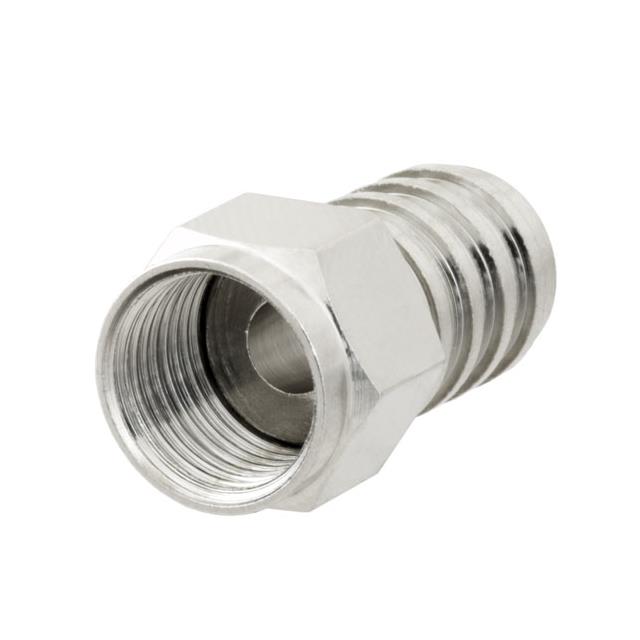

V7C00003
ActivePasternack
F S/T PLUG FOR RG59
V7C00003
ActivePasternack
F S/T PLUG FOR RG59
Description
General part information
V7C00003
F Type Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | V7C00003 |
|---|---|
| Body Finish | Nickel |
| Cable Group | RG-59 |
| Connector Style | F Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Fastening Type | Threaded |
| Frequency - Max | 1 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Crimp |
