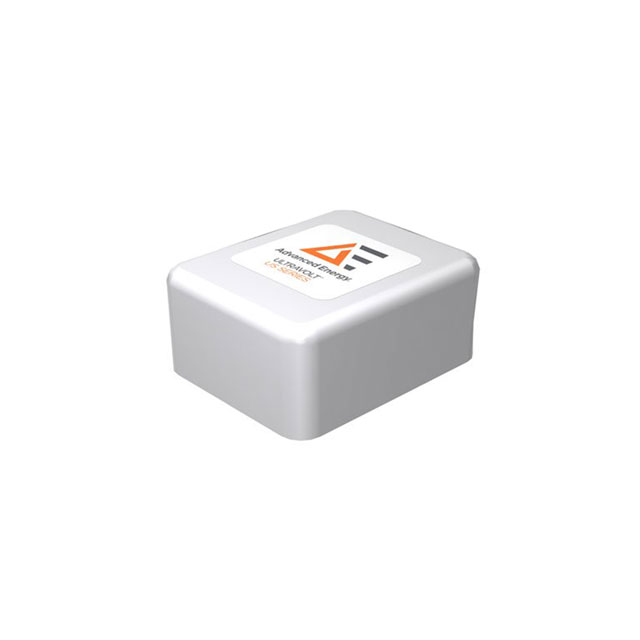

0.2US5-P0.1

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 200V

Search across all available documentation for this part.

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 200V

Technical Specifications

Parameters and characteristics for this part

Specification	0.2US5-P0.1

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Control Features	Active High, Enable
Current - Output (Max) [Max]	500 µA
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-10 °C
Package / Case	12-DIP Module, 7 Leads
Size / Dimension [x]	25.5 mm, 25.4 mm
Size / Dimension [y]	0.81 ", 20.5 mm
Size / Dimension [z]	11 mm, 0.43 in
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1	200 V

DC DC CONVERTER 200V

Part	Applications	Package / Case	Voltage - Output 1	Voltage - Input (Min) [Min]	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Control Features
ULTRAVOLT / Advanced Energy 0.2US5-P0.1	ITE (Commercial)	12-DIP Module, 7 Leads	200 V	4.5 V	1	500 µA	5.5 V	CE, cURus	-10 °C	65 °C	Through Hole	High Voltage - Non-Isolated Module	0.81 ", 20.5 mm	0.43 in, 11 mm	25.4 mm, 25.5 mm	Active High, Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High Voltage - Non-Isolated Module DC DC Converter 1 Output 200V 500µA 4.5V - 5.5V Input
