FODLC-YL-04
ActivePasternack
CA LC-LC 62.5/125 DPX YLW 4M
FODLC-YL-04
ActivePasternack
CA LC-LC 62.5/125 DPX YLW 4M
Description
General part information
FODLC-YL-04

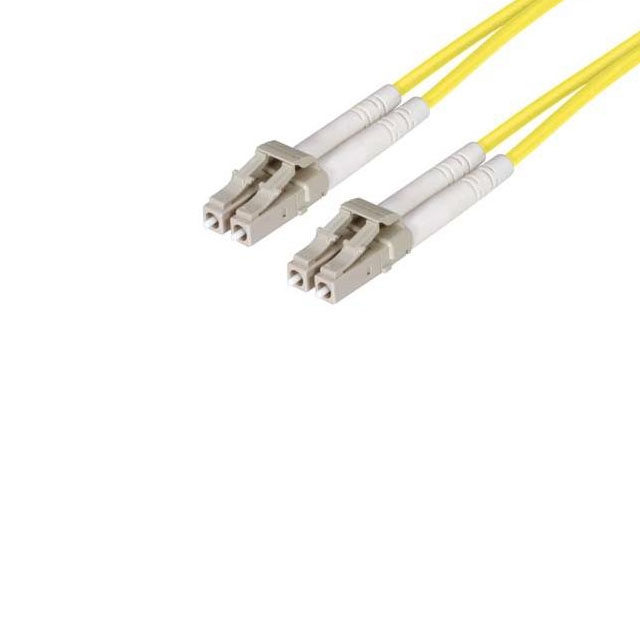

Cable Fiber Optic LC Duplex To LC Duplex 62.5/125 13.1' (4.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | FODLC-YL-04 |
|---|---|
| 1st Connector | LC Duplex |
| 2nd Connector | LC Duplex |
| Cable Diameter | 0.12 " |
| Color - Cable | Yellow |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 62.5 µm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length - Overall | 13.1 ft |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Type | Multimode, OM1, Duplex |
