444155-2
ActiveTE Connectivity AMP Connectors
RING TONGUE 1-5 MM2 0.6 ELECTRO TPBR
444155-2
ActiveTE Connectivity AMP Connectors
RING TONGUE 1-5 MM2 0.6 ELECTRO TPBR
Description
General part information
444155-2

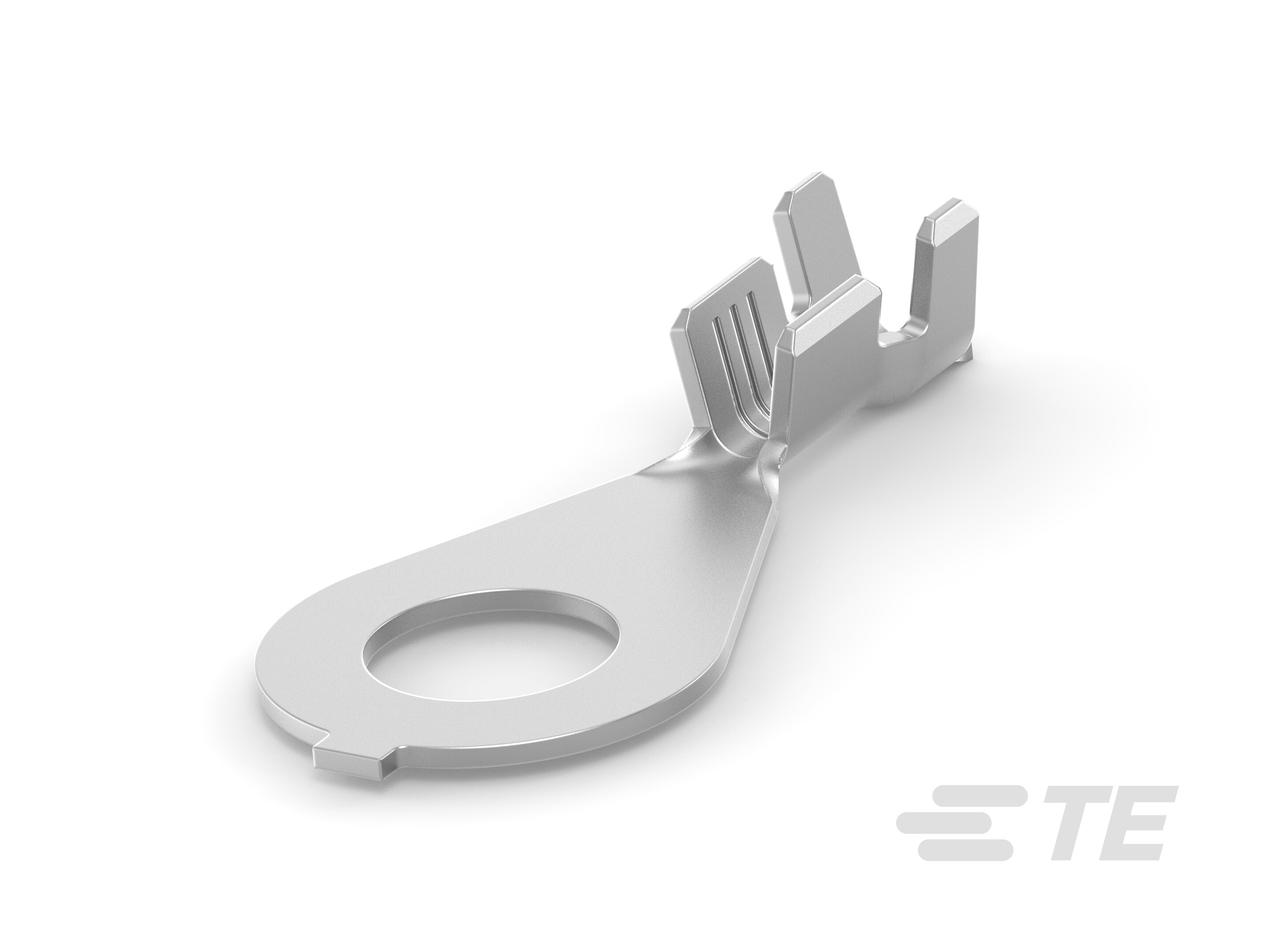

Closed Ring Tongue Terminal, 17 – 13 AWG, 1/4 Stud, 6.5 mm [.255 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 444155-2 |
|---|---|
| Contact Finish | Electro-Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 1.016 in |
| Mounting Type | Free Hanging (In-Line) |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.024 in |
| Width - Outer Edges | 0.472 in |
| Wire Gauge (AWG) (Max) | 17 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
