RER40F57R6RCSL
ActiveVishay Dale
RES CHAS MNT 57.6 OHM 1% 5W
RER40F57R6RCSL
ActiveVishay Dale
RES CHAS MNT 57.6 OHM 1% 5W
Description
General part information
RER40F57R6RCSL

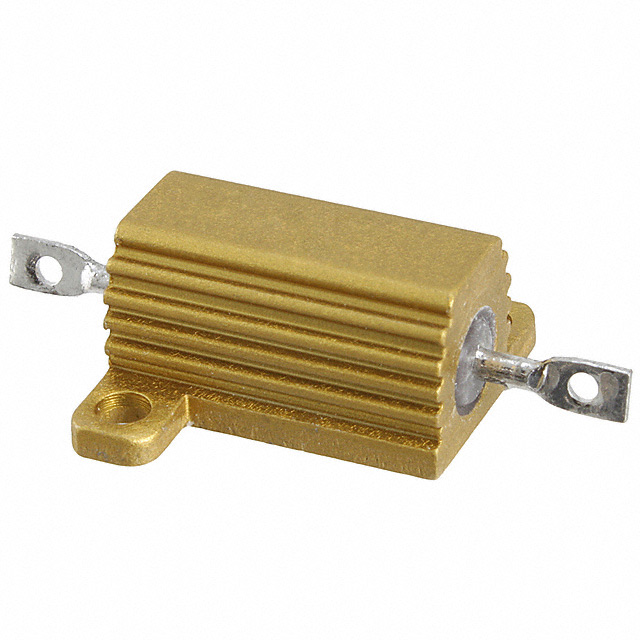

57.6 Ohms ±1% 5W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | RER40F57R6RCSL |
|---|---|
| Coating | Aluminum |
| Composition | Wirewound |
| Failure Rate (Percent) | 0.01 % |
| Failure Rate Rating | R |
| Features | Non-Inductive |
| Grade | Military |
| Height - Seated (Max) | 0.335 in |
| Housing Type | Aluminum |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 250 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Box, Axial |
| Power (Watts) | 5 W |
| Qualification | MIL-PRF-39009 |
| Resistance | 57.6 Ohm |
| Size / Dimension Length | 0.6 in |
| Size / Dimension Width | 0.646 in |
| Temperature Coefficient | 20 ppm/¯C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
