22UL1429STRYEL100
ActiveRemington Industries

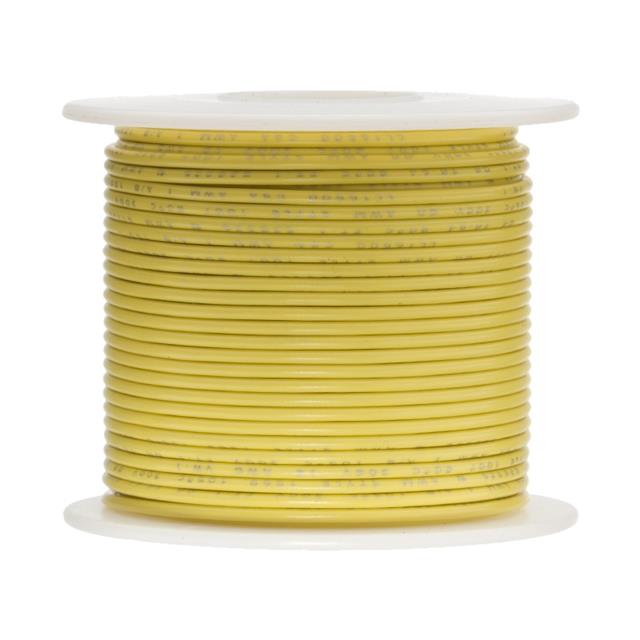

#22 UL1429 150V WIRE YEL 100'
22UL1429STRYEL100
ActiveRemington Industries
#22 UL1429 150V WIRE YEL 100'
Description
General part information
22UL1429STRYEL100
22 AWG Hook-Up Wire 7/30 Yellow 150V 100.0' (30.5m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 22UL1429STRYEL100 |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Gauge | 30 |
| Features | Abrasion Resistant, Solvent Resistant, Oil Resistant, Chemical Resistant |
| Jacket (Insulation) Diameter | 0.05 in |
| Jacket (Insulation) Material | Irradiated, Poly-Vinyl Chloride (XLPVC) |
| Jacket (Insulation) Thickness | 0.01 in |
| Jacket Color | Yellow |
| Length | 100 ft |
| Operating Temperature | 80 °C |
| Ratings | 1429, Style, UL |
| Voltage | 150 V |
| Wire Gauge | 22 AWG |
