C7D28DS29D1
ActiveTE Connectivity AMP Connectors
CONN EDGE DUAL FMALE 56POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
C7D28DS29D1
ActiveTE Connectivity AMP Connectors
CONN EDGE DUAL FMALE 56POS 0.125
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C7D28DS29D1 |
|---|---|
| Card Thickness [Max] | 0.071 in |
| Card Thickness [Max] | 1.8 mm |
| Card Thickness [Min] | 0.054 " |
| Card Thickness [Min] | 1.37 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature | 0.125 " |
| Flange Feature | 3.18 mm |
| Gender | Female |
| Material - Insulation | Thermoplastic, Glass Filled |
| Mounting Type | Through Hole |
| Number of Positions | 56 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
C7D28 Series
CONN EDGE DUAL FMALE 56POS 0.125
| Part | Card Type | Number of Rows | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Flange Feature | Flange Feature | Pitch [x] | Pitch [x] | Termination | Contact Material | Gender | Mounting Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Color | Contact Type | Read Out |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors C7D28DS29D1 | Non Specified - Dual Edge | 2 | Thermoplastic, Glass Filled | 0.054 " | 1.37 mm | 0.071 in | 1.8 mm | Flush Mount, Top Opening, Unthreaded | 0.125 " | 3.18 mm | 0.125 in | 3.18 mm | Solder | Copper Alloy | Female | Through Hole | 56 | -55 °C | 125 °C | 0.76 Ám | 30 Áin | Gold | Black | Cantilever | Dual |
Description
General part information
C7D28 Series

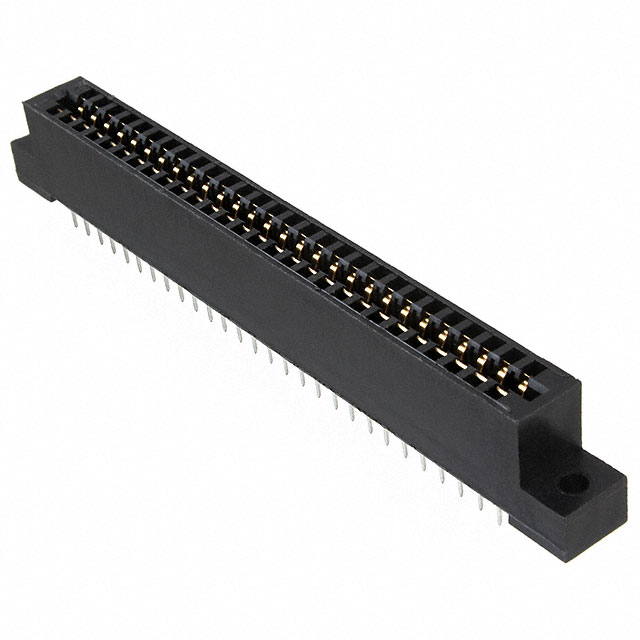

56 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
