690-005-299-043
ActiveEDAC Inc.

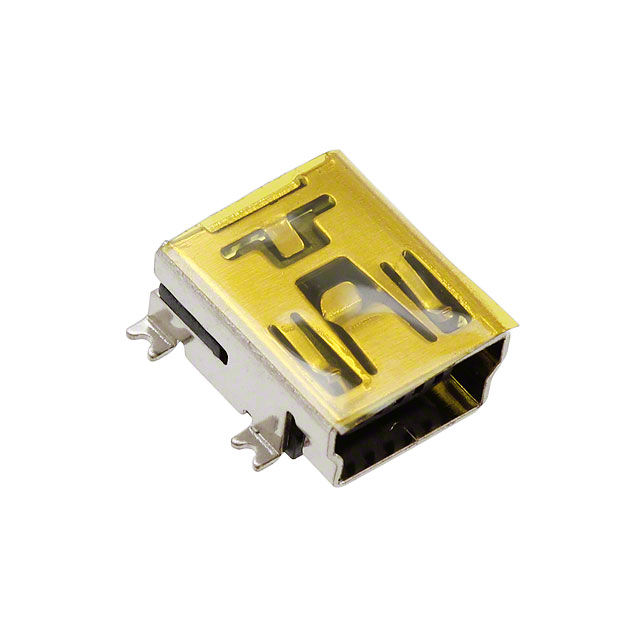

CONN MINI USB RCPT RA TYPE B SMD
Deep-Dive with AI
Search across all available documentation for this part.
690-005-299-043
ActiveEDAC Inc.
CONN MINI USB RCPT RA TYPE B SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 690-005-299-043 |
|---|---|
| Connector Type | USB - mini B |
| Contact Finish | Gold |
| Features | Solder Retention, Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount, Right Angle |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Brass |
| Shielding | Unshielded |
| Specifications | USB 2.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.65 | |
| 10 | $ 0.56 | |||
| 25 | $ 0.52 | |||
| 50 | $ 0.48 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.40 | |||
| Digi-Reel® | 1 | $ 0.65 | ||
| 10 | $ 0.56 | |||
| 25 | $ 0.52 | |||
| 50 | $ 0.48 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.40 | |||
| Tape & Reel (TR) | 1000 | $ 0.33 | ||
| 2000 | $ 0.32 | |||
| 3000 | $ 0.30 | |||
| 5000 | $ 0.29 | |||
| 10000 | $ 0.27 | |||
| 25000 | $ 0.26 | |||
Description
General part information
690-005 Series
USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
