3-110-088

Active

SCHURTER Inc.

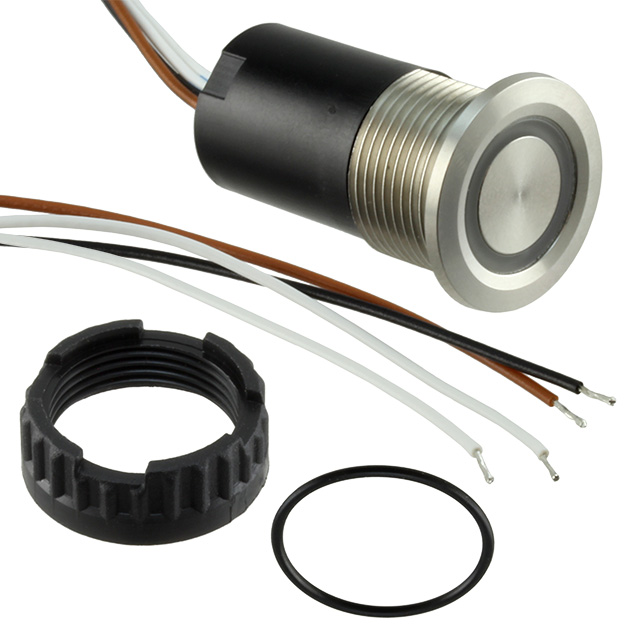

SWITCH PUSHBUTTON SPST 100MA 42V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPST 100MA 42V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-110-088	3-110 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPST	SPST
Color - Actuator/Cap	Silver	Silver
Current Rating (Amps)	100 mA	100 mA
Features	Finger Guide	Finger Guide
Illumination Type, Color	LED, Blue	LED, Blue, Green
Illumination Voltage (Nominal) [Max]	28 VDC	28 VDC
Illumination Voltage (Nominal) [Min]	5 VDC	5 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [diameter]	16.1 mm	16.1 mm
Switch Function	Off-On	Off-On
Termination Style	Wire Leads	Wire Leads
Type	Capacitive, Illuminated	Capacitive, Illuminated
Voltage Rating - AC	42 V	42 V
Voltage Rating - DC	60 VDC	60 VDC

SWITCH PUSHBUTTON SPST 100MA 42V

Part	Features	Type	Voltage Rating - DC	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Mounting Type	Ingress Protection	Termination Style	Actuator Marking	Switch Function	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Actuator Type	Current Rating (Amps)	Illumination Voltage (Nominal) [Max]	Illumination Voltage (Nominal) [Min]	Circuit
SCHURTER Inc. 3-110-088	Finger Guide	Capacitive, Illuminated	60 VDC	Silver	-40 °C	60 °C	42 V	Panel Mount, Front	IP67 - Dust Tight, Waterproof	Wire Leads	No Marking	Off-On	Blue, LED	16.1 mm	Button, Flush, Round	100 mA	28 VDC	5 VDC	SPST
SCHURTER Inc. 3-110-090	Finger Guide	Capacitive, Illuminated	60 VDC	Silver	-40 °C	60 °C	42 V	Panel Mount, Front	IP67 - Dust Tight, Waterproof	Wire Leads	No Marking	Off-On	Green, LED	16.1 mm	Button, Flush, Round	100 mA	28 VDC	5 VDC	SPST

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Capacitive, Illuminated Panel Mount, Front
