Description
General part information

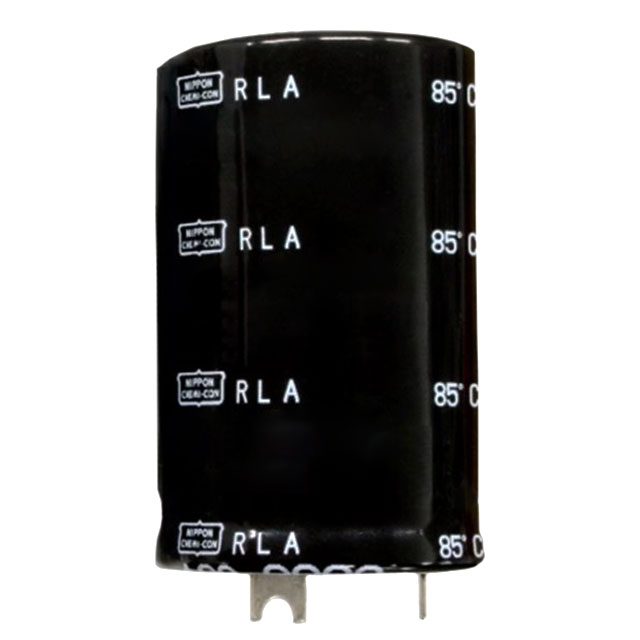

EKLA211LIN132KA39M
1300 µF 210 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | EKLA211LIN132KA39M |
|---|---|
| Applications | General Purpose |
| Capacitance | 1300 µF |
| Height - Seated (Max) | 1.634 in |
| Lead Spacing | 0.559 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 6.84 A, 4.56 A |
| Size / Dimension Diameter | 1.378 in |
| Tolerance | 10 % |
| Voltage - Rated | 210 V |
