RU42S-C-D24

Active

IDEC Corporation

POWER RELAY, 4PDT, 24 VDC, 3 A, RU SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RU42S-C-D24

Active

IDEC Corporation

POWER RELAY, 4PDT, 24 VDC, 3 A, RU SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RU42S-C-D24	RU42S-C Series

Approval Agency	CSA, TUV, cURus, CE	CSA, TUV, cURus, CE
Coil Current	44.7 mA	3.6 - 80 mA
Coil Resistance	605 Ohms	4.55 - 2560 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 220 VDC
Coil Voltage	-	200 VAC/DC
Coil Voltage	-	220 VAC/DC
Contact Form	4PDT (4 Form C)	4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	3 A	3 A
Features	Mechanical Indicator, Lighted Indicator	Mechanical Indicator, Lighted Indicator
Load - Max Switching	2500 VA, 300 W	300 - 2500 VA
Mounting Type	Socketable	Socketable
Must Operate Voltage	19.2 VDC	9.6 - 176 VDC
Must Release Voltage	2.4 VDC	1.2 - 66 VDC
Operate Time	20 ms	20 ms
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-55 °C	-55 °C
Relay Type	General Purpose	General Purpose
Release Time	20 ms	20 ms
Switching Voltage [Max]	30 VDC, 250 VAC	30 - 250 VDC
Termination Style	Plug In	Plug In, Plug In, 14 Pin

RU42S-C Series

POWER RELAY, 4PDT, 24 VDC, 3 A, RU SERIES, SOCKET, NON LATCHING

Part	Operate Time	Coil Type	Approval Agency	Release Time	Termination Style	Mounting Type	Relay Type	Switching Voltage [Max]	Coil Resistance	Coil Current	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Load - Max Switching	Contact Rating (Current)	Features	Contact Form	Contact Material	Must Release Voltage	Coil Voltage [Min]	Coil Voltage [Max]
IDEC Corporation RU42S-C-D24	20 ms	Non Latching	CE, CSA, cURus, TUV	20 ms	Plug In	Socketable	General Purpose	30 VDC, 250 VAC	605 Ohms	44.7 mA	24 VDC	-55 °C	60 °C	19.2 VDC	300 W, 2500 VA	3 A	Lighted Indicator, Mechanical Indicator	4PDT (4 Form C)	Gold (Au), Silver Nickel (AgNi)	2.4 VDC
IDEC Corporation RU42S-C-D110	20 ms	Non Latching	CE, CSA, cURus, TUV	20 ms	Plug In, 14 Pin	Socketable	General Purpose	30 VDC, 250 VAC	12.1 kOhms	8.9 mA	110 VDC	-55 °C	60 °C	88 VDC	300 W, 2500 VA	3 A	Lighted Indicator, Mechanical Indicator	4PDT (4 Form C)	Gold (Au), Silver Nickel (AgNi)	11 VDC
IDEC Corporation RU42S-C-D12	20 ms	Non Latching	CE, CSA, cURus, TUV	20 ms	Plug In, 14 Pin	Socketable	General Purpose	30 VDC, 250 VAC	160 Ohms	80 mA	12 VDC	-55 °C	60 °C	9.6 VDC	300 W, 2500 VA	3 A	Lighted Indicator, Mechanical Indicator	4PDT (4 Form C)	Gold (Au), Silver Nickel (AgNi)	1.2 VDC
IDEC Corporation RU42S-C-A200	20 ms	Non Latching	CE, CSA, cURus, TUV	20 ms	Plug In, 14 Pin	Socketable	General Purpose	30 VDC, 250 VAC		4 mA		-55 °C	60 °C		300 W, 2500 VA	3 A	Lighted Indicator, Mechanical Indicator	4PDT (4 Form C)	Gold (Au), Silver Nickel (AgNi)		200 VAC/DC	220 VAC/DC
IDEC Corporation RU42S-C-A220	20 ms	Non Latching	CE, CSA, cURus, TUV	20 ms	Plug In, 14 Pin	Socketable	General Purpose	30 VDC, 250 VAC	18.23 kOhms	3.6 mA	220 VAC/DC	-55 °C	60 °C	176 VAC	300 W, 2500 VA	3 A	Lighted Indicator, Mechanical Indicator	4PDT (4 Form C)	Gold (Au), Silver Nickel (AgNi)	66 VAC
IDEC Corporation RU42S-C-A110	20 ms	Non Latching	CE, CSA, cURus, TUV	20 ms	Plug In	Socketable	General Purpose	30 VDC, 250 VAC	4.55 kOhms	7.1 mA	120 VAC	-55 °C	60 °C	96 VAC	300 W, 2500 VA	3 A	Lighted Indicator, Mechanical Indicator	4PDT (4 Form C)	Gold (Au), Silver Nickel (AgNi)	36 VAC
IDEC Corporation RU42S-C-D48	20 ms	Non Latching	CE, CSA, cURus, TUV	20 ms	Plug In, 14 Pin	Socketable	General Purpose	30 VDC, 250 VAC	2560 Ohms	18 mA	48 VDC	-55 °C	60 °C	38.4 VDC	300 W, 2500 VA	3 A	Lighted Indicator, Mechanical Indicator	4PDT (4 Form C)	Gold (Au), Silver Nickel (AgNi)	4.8 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.85
		10	$ 11.22
		25	$ 10.64
		50	$ 10.44
Newark	Each	1	$ 15.20
		5	$ 14.83
		10	$ 14.45
		25	$ 13.69
		50	$ 12.93
		100	$ 12.17

Description

General part information

RU42S-C Series

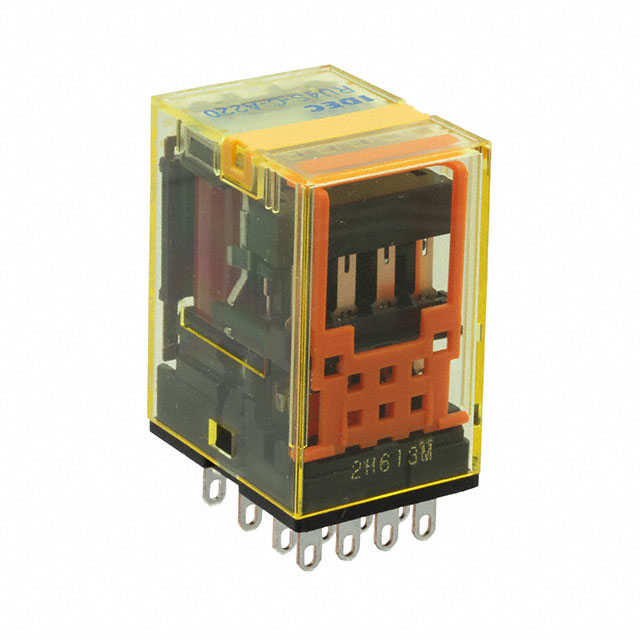

The RU42S-C-D24 is a general-purpose Compact Power Relay with DC coil. This RU-series power relay has 4PDT cadmium-free AuAg/Ag bifurcated contact without latching check button. Solder-free construction (spot welded, no solder points, lead-free), manual latching lever with color coding for AC or DC coil.
