Description
General part information

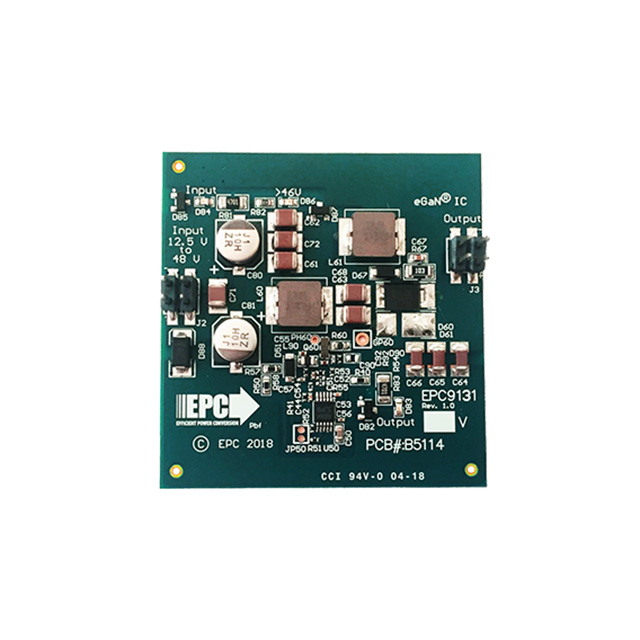

EPC9131
EPC2112 eGaN® DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | EPC9131 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 1.42 A |
| Frequency - Switching | 300 kHz |
| Main Purpose | Step Up or Down, DC/DC |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Power - Output | 27 W |
| Regulator Topology | Buck-Boost, SEPIC |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | EPC2112 |
| Voltage - Input (Maximum) | 48 V |
| Voltage - Input (Minimum) | 14 V |
| Voltage - Output | 19 V |
