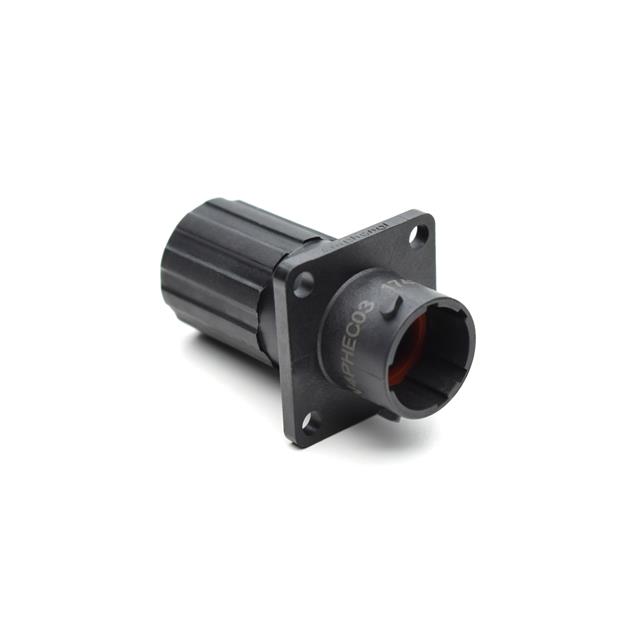

Specification	RTS010N4PHEC03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16 S
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Black
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	4
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Material	Thermoplastic
Shell Size - Insert Length	10 mm
Shell Size - Insert Width	4 mm
Shielding	Unshielded
Type	For Male Pins

RTS010 Series

Part	Shielding	Type	Housing Color	Shell Material	Contact Type	Number of Positions	Ingress Protection IP Rating	Ingress Protection Description	Orientation	Mounting Type	Fastening Type	Contact Size	Connector Type	Material Flammability Rating	Mounting Feature	Shell Size - Insert Length	Shell Size - Insert Width	Note	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Contact Shape	Includes Total Count	Includes	Accessory Type	For Use With/Related Products	Shell Size - Insert	Shell Size - Insert	Material	Color	Features	Primary Material
McGill Microwave Systems RTS010N6S03	Unshielded	For Female Sockets	Black	Thermoplastic	Crimp	6	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	Panel Mount	Bayonet Lock	20	Receptacle Housing	UL94 V-0	Flange	10 mm	6 mm	Contacts Not Included	125 °C	-40 °C	Thermoplastic	Circular	2 pcs	Connector Gasket
McGill Microwave Systems RTS010N3P03	Unshielded	For Male Pins	Black	Thermoplastic	Crimp	3	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	Panel Mount	Bayonet Lock	16 S	Receptacle Housing	UL94 V-0	Flange	10 mm	3 mm	Contacts Not Included	125 °C	-40 °C	Thermoplastic	Circular	2 pcs	Connector Gasket
McGill Microwave Systems RTS010DCG																									Cap (Cover) Dust	Receptacle Connectors	10	10	Thermoplastic	Black	Contains Strap with Ring Dust Tight Waterproof

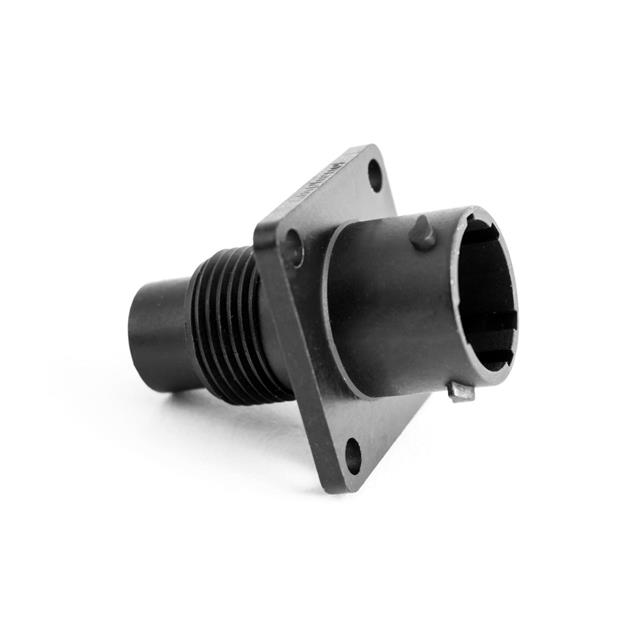

McGill Microwave Systems RTS010N3W3P03	Unshielded	For Male Pins	Black	Thermoplastic	Crimp	6	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	Panel Mount	Bayonet Lock	16 20	Receptacle Housing	UL94 V-0	Flange			Contacts Not Included	125 °C	-40 °C	Thermoplastic	Circular						10-3W3				Plastic
McGill Microwave Systems RTS010N4S03	Unshielded	For Female Sockets	Black	Thermoplastic	Crimp	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	Panel Mount	Bayonet Lock	16 S	Receptacle Housing	UL94 V-0	Flange	10 mm	4 mm	Contacts Not Included	125 °C	-40 °C	Thermoplastic	Circular	2 pcs	Connector Gasket
McGill Microwave Systems RTS010N3S03	Unshielded	For Female Sockets	Black	Thermoplastic	Crimp	3	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	Panel Mount	Bayonet Lock	16 S	Receptacle Housing	UL94 V-0	Flange	10 mm	3 mm	Contacts Not Included	125 °C	-40 °C	Thermoplastic	Circular	2 pcs	Connector Gasket

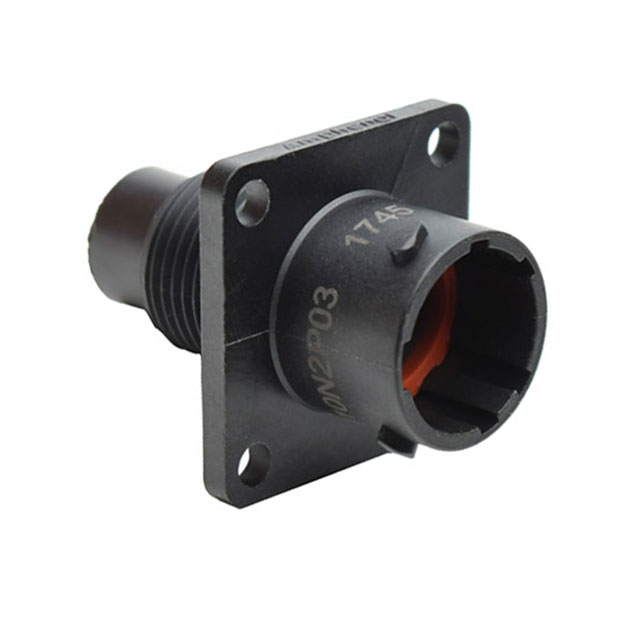

McGill Microwave Systems RTS010N2P03	Unshielded	For Male Pins	Black	Thermoplastic	Crimp	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	Panel Mount	Bayonet Lock	16 20	Receptacle Housing	UL94 V-0	Flange	10 mm	2 mm	Contacts Not Included	125 °C	-40 °C	Thermoplastic	Circular	2 pcs	Connector Gasket

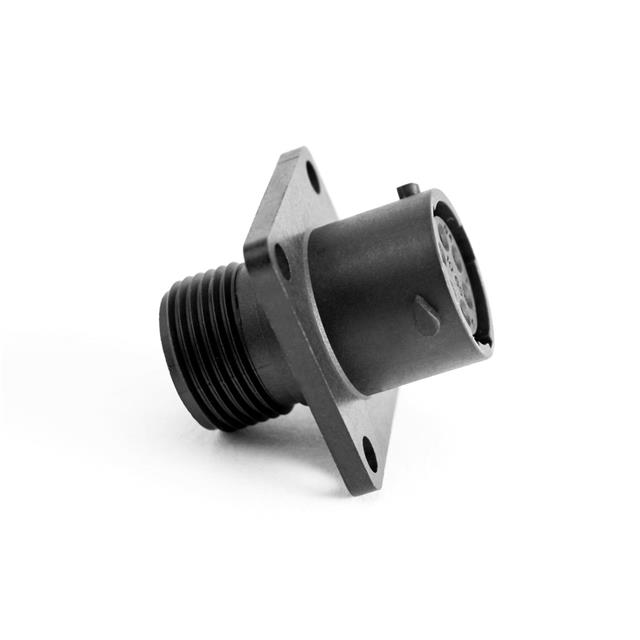

McGill Microwave Systems RTS010N3W3S03	Unshielded	For Female Sockets	Black	Thermoplastic	Crimp	6	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	Panel Mount	Bayonet Lock	16 20	Receptacle Housing	UL94 V-0	Flange			Contacts Not Included	125 °C	-40 °C	Thermoplastic	Circular						10-3W3				Plastic
McGill Microwave Systems RTS010N6P03	Unshielded	For Male Pins	Black	Thermoplastic	Crimp	6	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	Panel Mount	Bayonet Lock	20	Receptacle Housing	UL94 V-0	Flange	10 mm	6 mm	Contacts Not Included	125 °C	-40 °C	Thermoplastic	Circular	2 pcs	Connector Gasket
McGill Microwave Systems RTS010N6SHEC03	Unshielded	For Female Sockets	Black	Thermoplastic	Crimp	6	IP67 IP69K	Dust Tight Water Resistant Waterproof	N (Normal)	Panel Mount	Bayonet Lock	20	Receptacle Housing	UL94 V-0	Flange	10 mm	6 mm	Contacts Not Included	125 °C	-40 °C	Thermoplastic	Circular									Backshell
