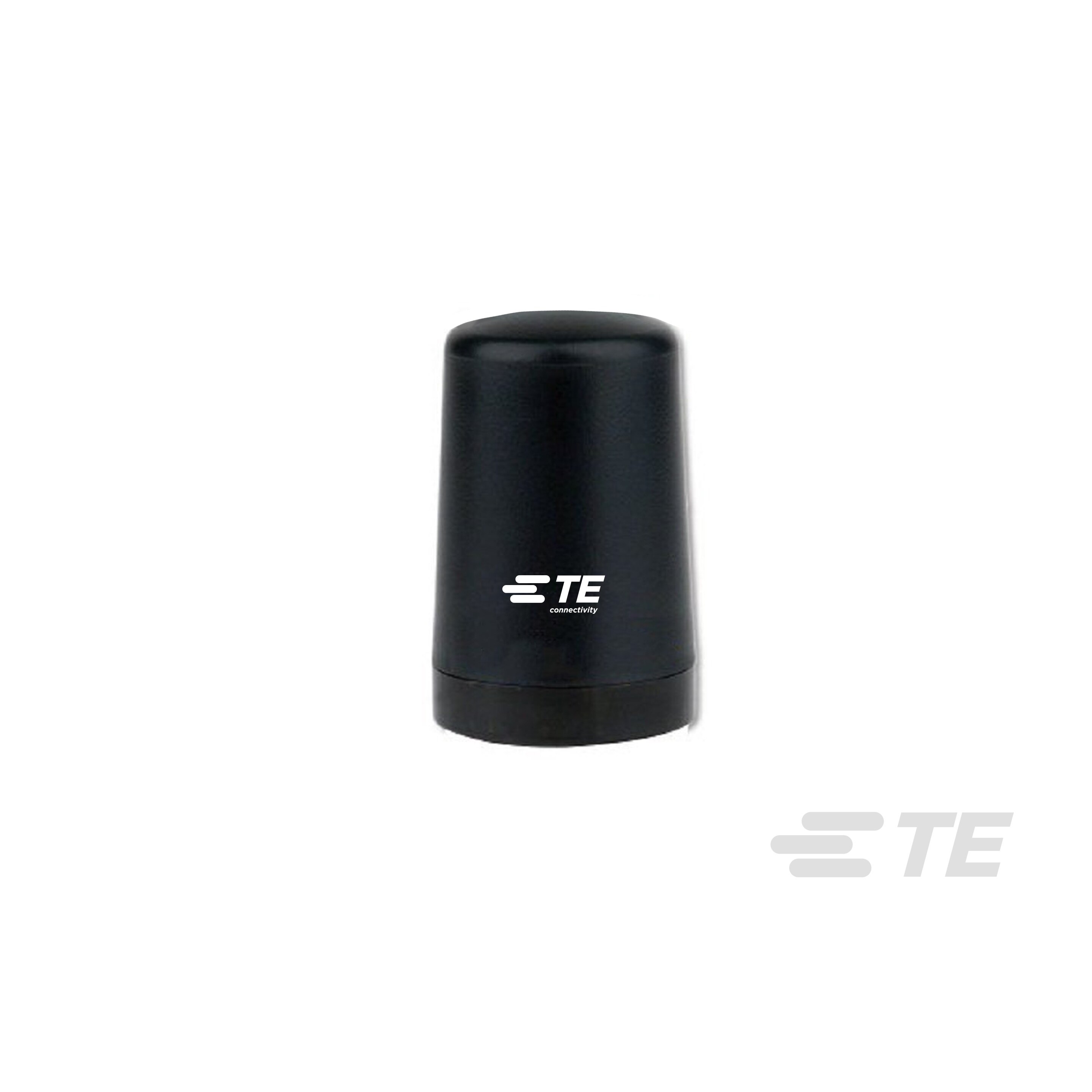

TRAB9023
ActiveTE Connectivity AMP Connectors
OMNI,SB,PH,902-928MHZ 3,3/4 NMO
TRAB9023
ActiveTE Connectivity AMP Connectors
OMNI,SB,PH,902-928MHZ 3,3/4 NMO
Description
General part information
TRAB9023
Baton/Stick Antenna, Single Band, ISM / LoRaWAN, External Mount, Stud/Screw/Lug Mount, NMO, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | TRAB9023 |
|---|---|
| Antenna Type | Dome |
| Applications | GSM |
| Frequency (Center/Band) | 915 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 928 MHz |
| Frequency Range (Min) | 902 MHz |
| Gain | 3 dBi |
| Height (Max) | 2.7 in |
| Mounting Type | Base Mount |
| Number of Bands | 1 |
| Power - Max | 150 W |
| RF Family/Standard | Cellular |
| Termination | NMO |
| VSWR | 2 |
