Description
General part information
DC2903A-B

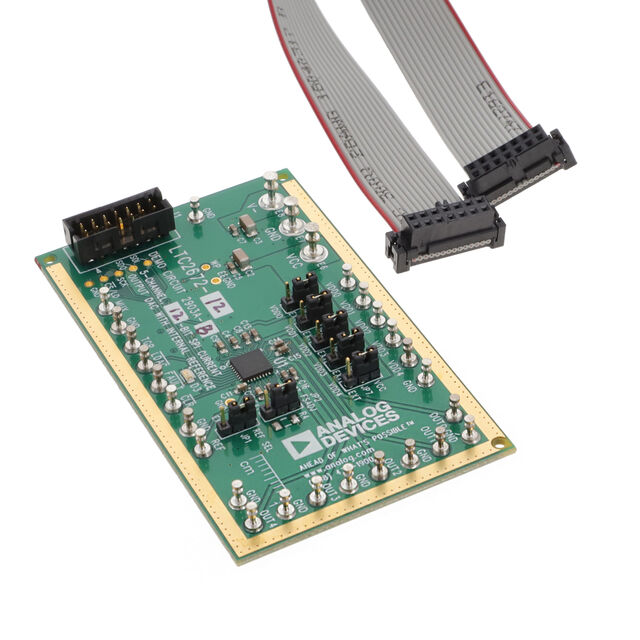

DC2903A-B is a LTC2672-12 five-channel, low dropout, 300mA, current source output, 12bit SoftSpan DAC demonstration board. The DC2903A is a fully featured evaluation board that evaluates the LTC2672, a five-channel, current source output digital-to-analog converter (DAC). The DC2903A is controlled through a serial peripheral interface (SPI) from the J1 connector. The SPI signals are sent from the DC2026C controller board through the ribbon cable that is connected to the DC2903A. The DC2903A uses QuikEval evaluation software to provide an intuitive graphical user interface (GUI) that configures and controls the LTC2672 using the SPI interface.
Technical Specifications
Parameters and characteristics for this part
| Specification | DC2903A-B |
|---|---|
| Contents | Board, Cable |
| DAC Type | Current |
| Data Interface | SPI |
| Number of Bits | 12 bits |
| Number of DAC's | 5 |
| Settling Time | 3.8 µs |
| Supplied Contents | Board(s), Cable(s) |
| Utilized IC / Part | LTC2672-12 |
