FERRITE CORE P 2.8UH N87 2PCS
B65541W0000R087
ActiveEPCOS - TDK Electronics
FERRITE CORE P 2.8UH N87 2PCS
Description
General part information
B65541W0000R087

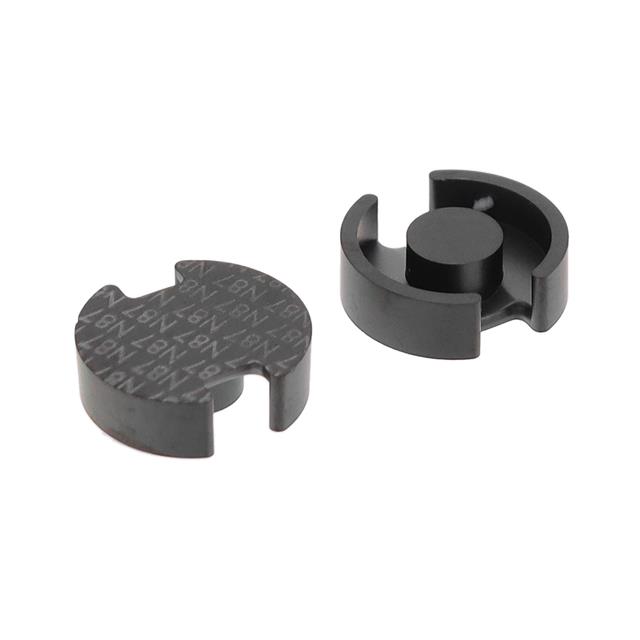

Uncoated N87 Ferrite Core P (Pot Core) Type Length Width 0.563" (14.30mm) Diameter 0.167" (4.25mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | B65541W0000R087 |
|---|---|
| Core Factor (ΣI/A) | 0.73 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 0.73 mm⁻¹ |
| Core Type | P (Pot Core) |
| Diameter | 0.563 in |
| Effective Area (Ae) | 28.7 mm² |
| Effective Length (le) | 21 mm |
| Effective Magnetic Volume (Ve) | 603 mm³ |
| Effective Permeability (µe) | 1630 |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 0.167 in |
| Inductance Factor (Al) | 2.8 µH |
| Initial Permeability (µi) | 2200 |
| Material | N87 |
| Minimum Core Cross Section (Amin) (mm²) | 23.6 mm² |
| Package Length | 14 mm |
| Package Name | P |
| Package Width | 8 mm |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 30 % |
