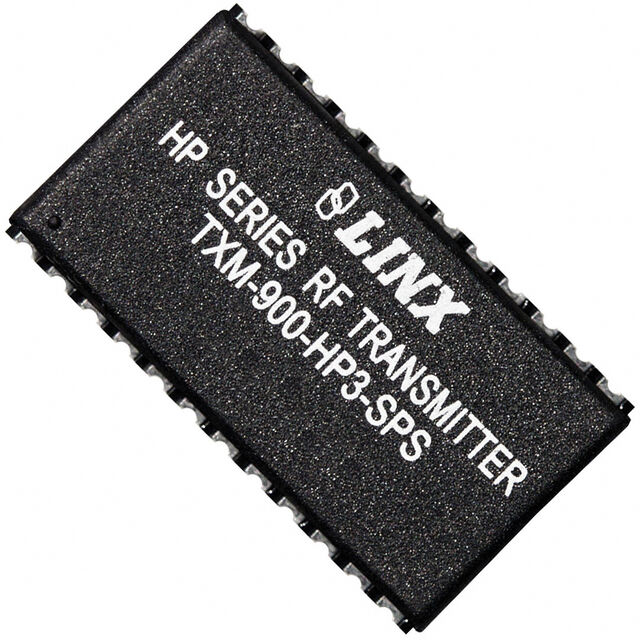

TXM-900-HP3-SPS
ObsoleteTE Connectivity AMP Connectors
RF TX IC FM 902-928MHZ 24SMD MOD
TXM-900-HP3-SPS
ObsoleteTE Connectivity AMP Connectors
RF TX IC FM 902-928MHZ 24SMD MOD
Description
General part information
TXM-900-HP3-SPS
RF Transmitter FM, FSK 902MHz ~ 928MHz -3dBm ~ 3dBm 56kbps PCB, Surface Mount Antenna 24-SMD Module
Technical Specifications
Parameters and characteristics for this part
| Specification | TXM-900-HP3-SPS |
|---|---|
| Antenna Connector | PCB, Surface Mount |
| Applications | Voice / Audio, Telemetry, Remote Monitoring, ISM |
| Current - Transmitting | 14 mA |
| Data Interface | PCB, Surface Mount |
| Data Rate (Max) | 56 kbps |
| Features | Analog and Digital Data, Multiple Channels |
| Frequency (Max) | 928 MHz |
| Frequency (Min) | 902 MHz |
| Modulation or Protocol | FM, FSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 24-SMD Module |
| Package Name | Module |
| Power - Output (Maximum) | 3 dBm |
| Power - Output (Minimum) | -3 dBm |
| Voltage - Supply (Maximum) | 13 V |
| Voltage - Supply (Minimum) | 2.8 V |
