2360229-5
ActiveTE Connectivity AMP Connectors

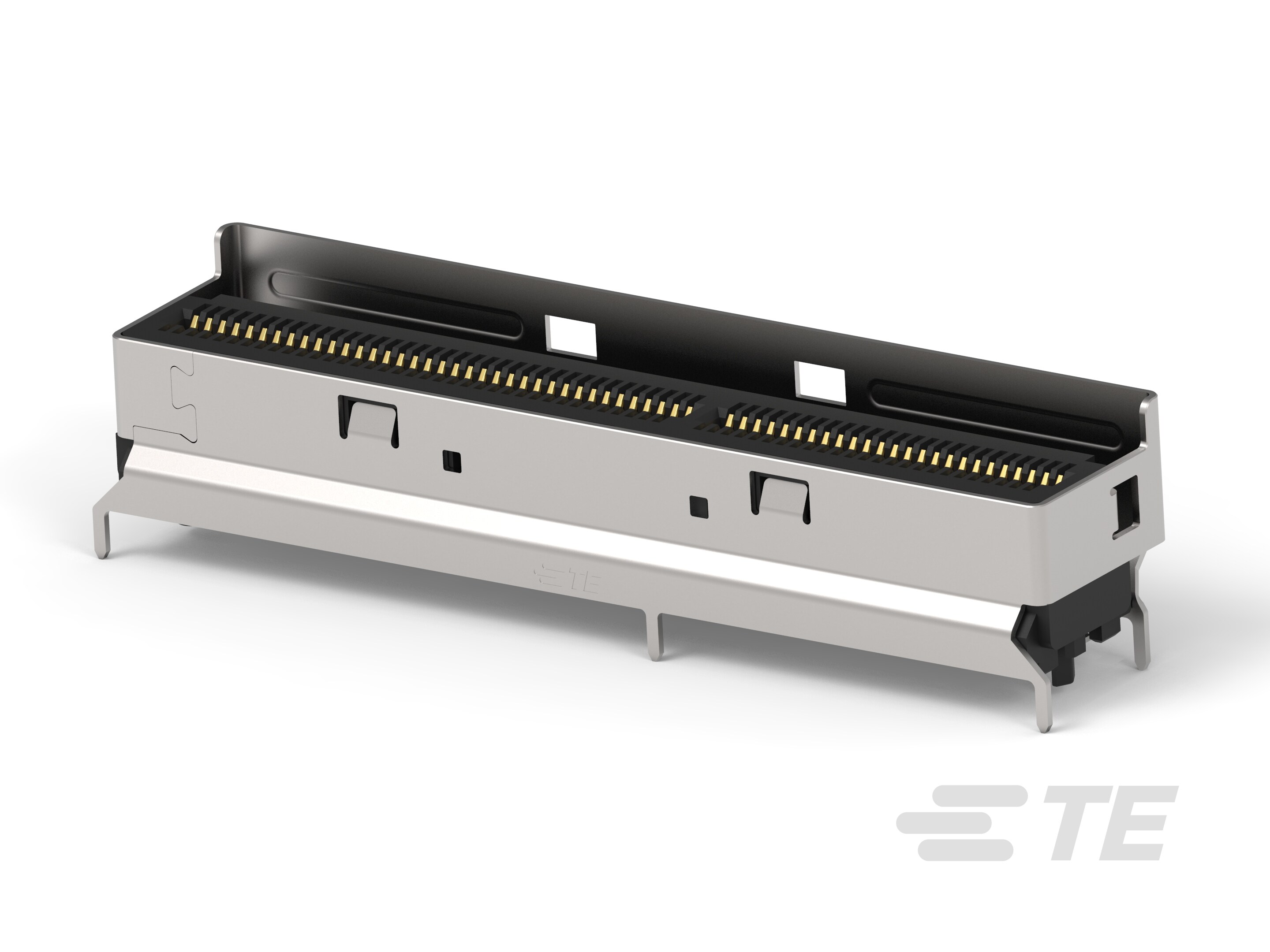

LOW PROFILE SLIMLINE SAS 16X V/T REC
2360229-5
ActiveTE Connectivity AMP Connectors
LOW PROFILE SLIMLINE SAS 16X V/T REC
Description
General part information
2360229-5
SlimSAS Low Profile, Cable Plug Assembly, Vertical, Cable-to-Board, 124 Position, Surface Mount, .6 mm [.023 in] Centerline, Internal I/O Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 2360229-5 |
|---|---|
| Connector Style | Receptacle |
| Connector Type | SAS, 16x |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Dust Cap, Board Guide |
| Mounting Type | Surface Mount |
| Number of Positions | 124 |
| Termination | Solder |
