2387125-1
NRNDTE Connectivity AMP Connectors
STANDARD CIRCULAR CONNECTOR FL CONN CA,STD,SER 1,SZ 17-16,L 0.5M
2387125-1
NRNDTE Connectivity AMP Connectors
STANDARD CIRCULAR CONNECTOR FL CONN CA,STD,SER 1,SZ 17-16,L 0.5M
Description
General part information
2387125-1

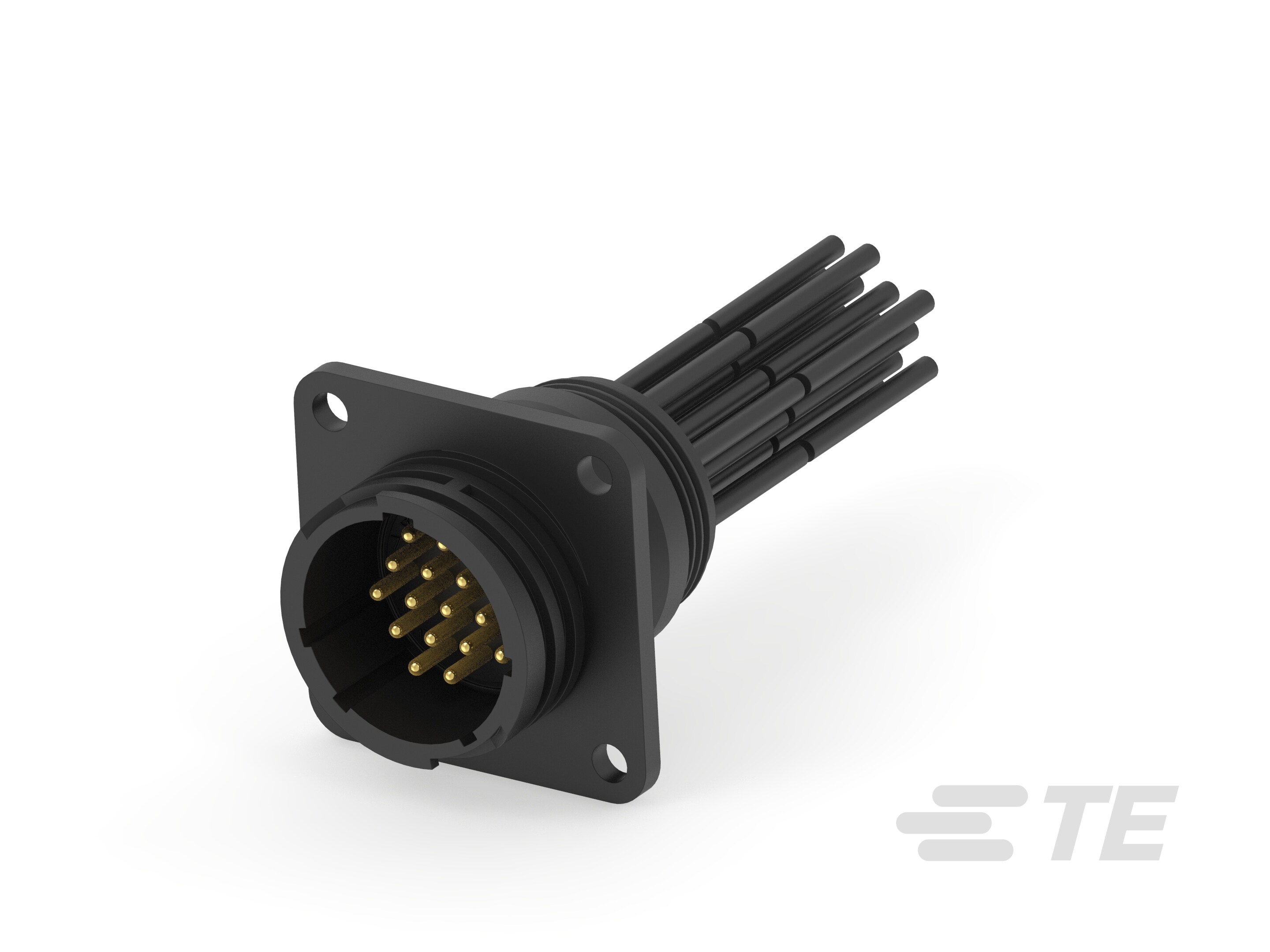

CPC Pigtail Cable Assembly, .5 m, 18 AWG, CPC Receptacle End A, Industry Standard, 16 Power Positions, 16 Signal Positions
Technical Specifications
Parameters and characteristics for this part
| Specification | 2387125-1 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 16 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Type | Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Type | Individual |
| Color | Black |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Length | 1.64 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
