FSP150-ABAN3

Active

FSP Technology Inc.

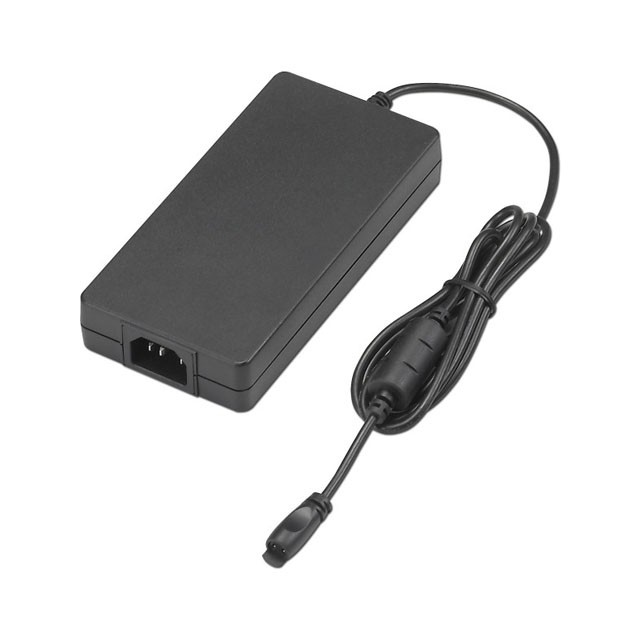

AC/DC DESKTOP ADAPTER 19V 150W

Search across all available documentation for this part.

Active

FSP Technology Inc.

AC/DC DESKTOP ADAPTER 19V 150W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FSP150-ABAN3	FSP150 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, VCCI, CB, cULus, FCC, CCC, TUV, GS	FCC, VCCI, UL, CE, CSA, cURus, CB, cULus, CCC, TUV, GS
Cord Length	70.9 in	70.9 in
Cord Length	1.8 m	1.8 m
Current - Output (Max) [Max]	7.89 A	7.89 A
Current - Output 1	-	2.78 A
Efficiency	CoC Tier 2, Level VI	CoC Tier 2, Level VI
Efficiency	-	92 %
Features	-	PFC, Universal Input
Form	Desktop (Class I)	Desktop (Class I)
Input Connector	IEC 320-C14	IEC 320-C14
Input Type	Cord	Cord
Minimum Load Required	-	True
Mounting Type	-	Chassis Mount
No Load Power Consumption [Max]	150 mW	150 mW
Number of Outputs	-	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	-20 - 0 °C
Output Connector	4 Pin	4 Pin
Output Connector	Power DIN	Power DIN
Power (Watts)	150 W	150 W
Region Utilized	International	International
Size / Dimension [x]	5.96 "	5 - 5.96 in
Size / Dimension [x]	151.3 mm	127 - 151.3 mm
Size / Dimension [y]	75.6 mm	75.6 - 76.2 mm
Size / Dimension [y]	2.98 "	2.98 - 3 "
Size / Dimension [z]	1 "	1 - 1.06 in
Size / Dimension [z]	25.4 mm	25.4 - 27 mm
Standard Number	60950-1, 62368-1	60950-1, 62368-1
Type	-	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	-	500 V
Voltage - Output	19 V	19 V
Voltage - Output 1	-	54 V

AC/DC CONVERTER 54V 150W

Part	Mounting Type	Number of Outputs	Voltage - Output 1	Efficiency	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Minimum Load Required	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Power (Watts)	Current - Output 1	Features	Voltage - Isolation	Input Connector	Voltage - Output	Current - Output (Max) [Max]	Input Type	Efficiency	Form	Cord Length	Cord Length	Region Utilized	Output Connector	Output Connector	No Load Power Consumption [Max]
FSP Technology Inc. FSP150-P35-A54	Chassis Mount	1	54 V	92 %	60950-1, 62368-1	90 VAC	264 VAC	CB, CE, CSA, cURus, FCC, UL, VCCI	Open Frame	1.06 in	76.2 mm	127 mm	3 "	27 mm	5 in		-20 °C	70 °C	ITE (Commercial)	150 W	2.78 A	PFC, Universal Input	500 V
FSP Technology Inc. FSP150-ABAN3					60950-1, 62368-1	90 VAC	264 VAC	CB, CCC, CE, cULus, FCC, GS, TUV, VCCI		1 "	75.6 mm	151.3 mm	2.98 "	25.4 mm	5.96 "		0 °C	70 °C	ITE (Commercial)	150 W				IEC 320-C14	19 V	7.89 A	Cord	CoC Tier 2, Level VI	Desktop (Class I)	70.9 in	1.8 m	International	4 Pin	Power DIN	150 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19V 150 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
