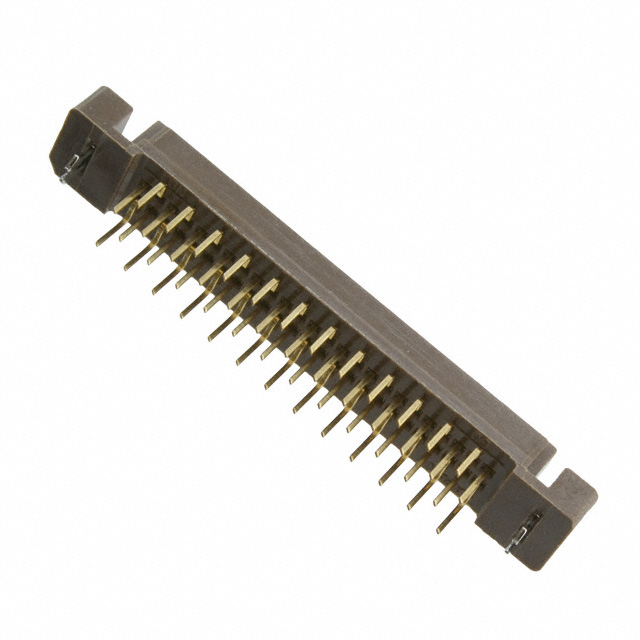

Specification	P50L-050S-A-DA

Connector Type	Outer Shroud Contacts, Socket
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Features	Flange, Board Lock
Height Above Board	0.213 in
Mated Stacking Height Options	7mm, 9mm
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	2
Pitch	0.05 in

P50L Series

Part	Number of Positions	Mounting Type	Number of Rows	Connector Type	Height Above Board	Contact Finish	Features	Contact Finish Thickness	Pitch	Contact Finish Thickness (string set options)	Contact Finish Thickness	Mated Stacking Height Options
3M Electronic Specialty P50L-080S-RR1-TGF	80	Right Angle Through Hole	2	Outer Shroud Contacts Socket	0.275 in	Gold	Board Lock	3 µin	0.05 in
3M Electronic Specialty P50L-080S-RR1-DA	80	Right Angle Through Hole	2	Outer Shroud Contacts Socket	0.275 in	Gold	Board Lock	0	0.05 in	Flash	Flash
3M Electronic Specialty P50L-060S-A-DA	60	Through Hole	2	Outer Shroud Contacts Socket	0.213 in	Gold	Board Lock Flange	0	0.05 in	Flash	Flash	7mm 9mm
3M Electronic Specialty P50L-080S-A-DA	80	Through Hole	2	Outer Shroud Contacts Socket	0.213 in	Gold	Board Lock Flange	0	0.05 in	Flash	Flash	7mm 9mm
3M Electronic Specialty P50L-100S-RR1-DA	100	Right Angle Through Hole	2	Outer Shroud Contacts Socket	0.275 in	Gold	Board Lock	0	0.05 in	Flash	Flash
3M Electronic Specialty P50L-120S-B-TGF	120	Through Hole	2	Outer Shroud Contacts Socket	0.252 in	Gold	Board Lock Flange	2 µin	0.05 in			10mm 8mm
3M Electronic Specialty P50L-060P-AS-DA	60	Surface Mount	2	Center Strip Contacts Plug	0.197 in	Gold	Board Guide Solder Retention	0	0.05 in	Flash	Flash	7mm 8mm
3M Electronic Specialty P50L-060S-B-TGF	60	Through Hole	2	Outer Shroud Contacts Socket	0.252 in	Gold	Board Lock Flange	2 µin	0.05 in			10mm 8mm
3M Electronic Specialty P50L-060P-RR1-DA	60	Right Angle Through Hole	2	Center Strip Contacts Plug	0.275 in	Gold	Board Lock Flange	0	0.05 in	Flash	Flash
3M Electronic Specialty P50L-020S-RR1-TGF	20	Right Angle Through Hole	2	Outer Shroud Contacts Socket	0.275 in	Gold	Board Lock	3 µin	0.05 in
