1-776267-4
ActiveTE Connectivity AMP Connectors

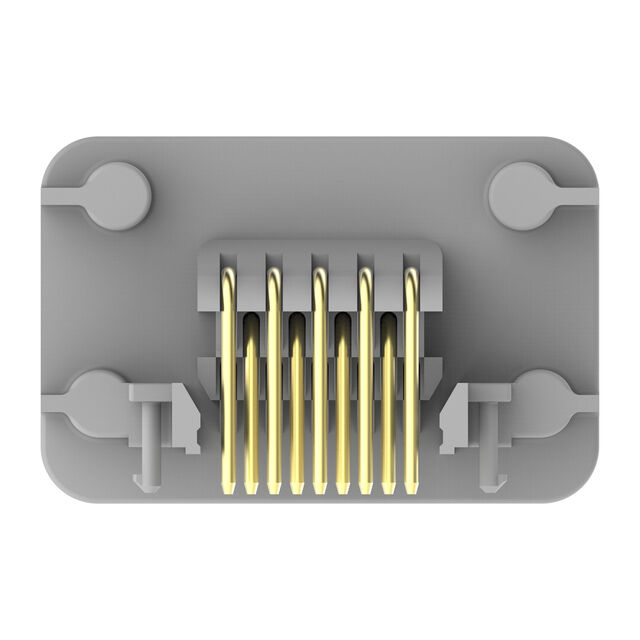

CONN HEADER R/A 14POS 4MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-776267-4
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 14POS 4MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-776267-4 | 776267 Series |
|---|---|---|
| Applications | Industrial, Automotive | Industrial, Automotive |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold-Palladium | Gold-Palladium |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Board Guide, Sealed | Board Guide, Sealed |
| Insulation Color | Gray | Gray, Black |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 14 | 14 |
| Number of Positions Loaded | All | All |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 125 °C | 105 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.157 " | 0.157 " |
| Pitch - Mating | 4 mm | 4 mm |
| Row Spacing - Mating | 0.157 in | 0.157 in |
| Row Spacing - Mating | 4 mm | 4 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
776267 Series
CONN HEADER R/A 14POS 4MM
| Part | Features | Connector Type | Contact Shape | Termination | Number of Positions Loaded | Contact Finish - Mating | Number of Positions | Shrouding | Contact Material | Style | Contact Type | Fastening Type | Voltage Rating | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Number of Rows | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Insulation Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-776267-4 | Board Guide, Sealed | Header | Circular | Solder | All | Gold-Palladium | 14 | Shrouded - 4 Wall | Brass | Board to Cable/Wire | Male Pin | Locking Ramp | 250 VAC | Varies by Wire Gauge | 0.157 " | 4 mm | 3 | Automotive, Industrial | 125 °C | -40 °C | 0.157 in | 4 mm | Gray | Polybutylene Terephthalate (PBT), Glass Filled | Panel Mount, Right Angle, Through Hole |
TE Connectivity AMP Connectors 776267-1 | Board Guide, Sealed | Header | Circular | Solder | All | 14 | Shrouded - 4 Wall | Brass | Board to Cable/Wire | Male Pin | Locking Ramp | 250 VAC | Varies by Wire Gauge | 0.157 " | 4 mm | 3 | Automotive, Industrial | 105 ░C | -40 °C | 0.157 in | 4 mm | Black | Polybutylene Terephthalate (PBT), Glass Filled | Panel Mount, Right Angle, Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.35 | |
| 36 | $ 11.75 | |||
| 108 | $ 10.48 | |||
| 468 | $ 10.41 | |||
| 972 | $ 10.03 | |||
Description
General part information
776267 Series
Connector Header Panel Mount, Through Hole, Right Angle 14 position 0.157" (4.00mm)
