Part	Connector Type	Number of Positions	Contact Termination	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Features	Contact Type	Color	Fastening Type	Pitch	Number of Rows	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Type	Pin or Socket	Contact Finish	Contact Finish Thickness	Insulation Material	Row Spacing
TE Connectivity AMP Connectors 2316210-1	Receptacle	3	Crimp	Free Hanging (In-Line)	-40 °C	105 °C	Sealed	Female Socket	Black	Latch Lock	0.071 in	1
TE Connectivity AMP Connectors 1-2177909-1			Crimp										22 AWG	24 AWG	Stamped	Socket	Tin
TE Connectivity AMP Connectors 2177908-1			Crimp										25 AWG	26 AWG	Stamped	Socket	Tin	31.5 µin
TE Connectivity AMP Connectors 1-2177908-1			Crimp										25 AWG	26 AWG	Stamped	Socket	Tin	31.5 µin
TE Connectivity AMP Connectors 2318600-1	Receptacle	12	Crimp	Free Hanging (In-Line)	-40 °C	105 °C	Sealed	Female Socket	Black	Latch Lock	0.071 in	2							Plastic	0.059 in

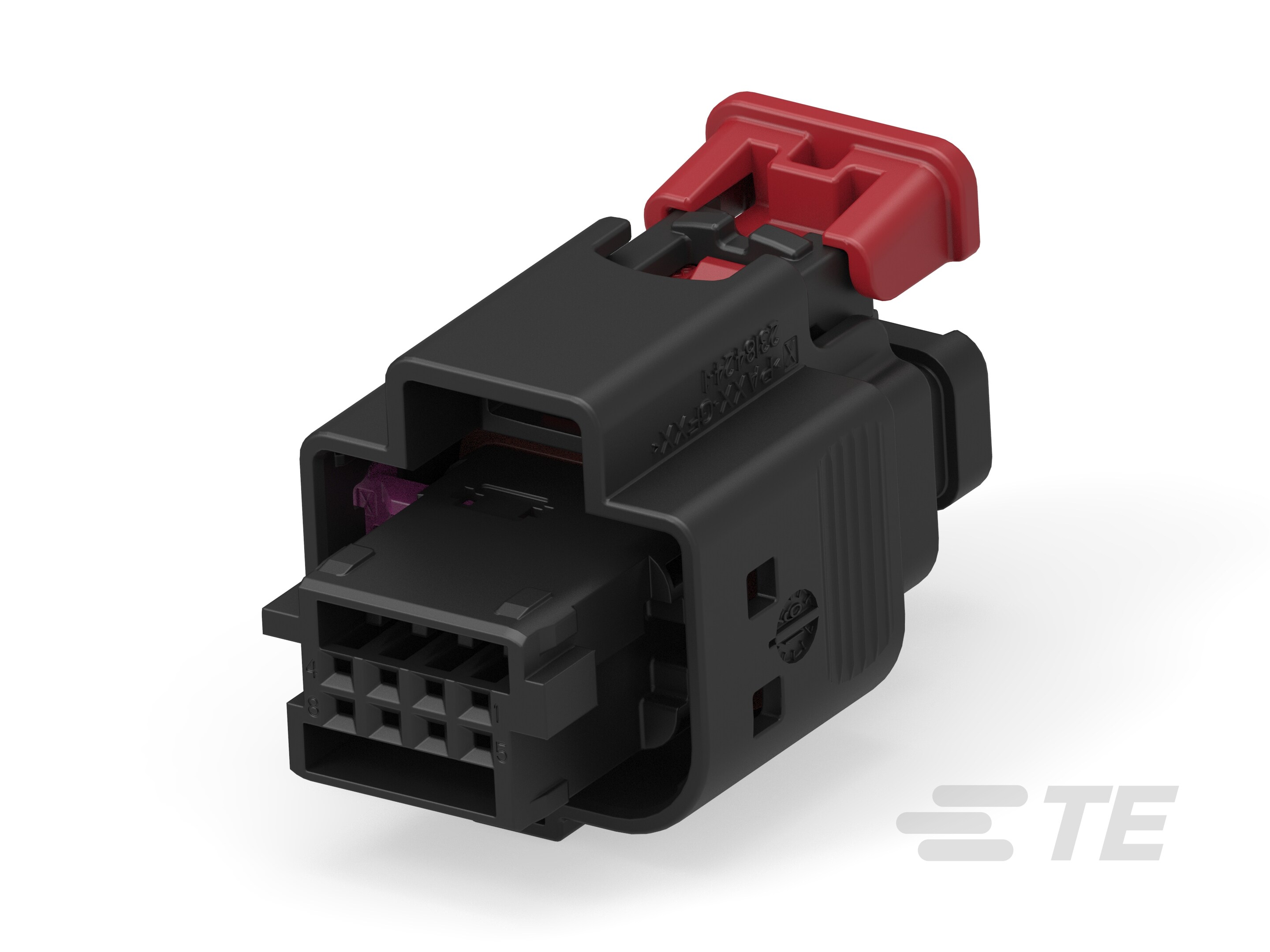

TE Connectivity AMP Connectors 2318400-1	Receptacle	8	Crimp	Free Hanging (In-Line)	-40 °C	105 °C	Terminal Position Lock (TPA)	Female Socket	Black	Latch Holder	0.071 in	2							Glass Filled Nylon 6/6 Polyamide (PA66)	0.059 in
TE Connectivity AMP Connectors 2177908-1

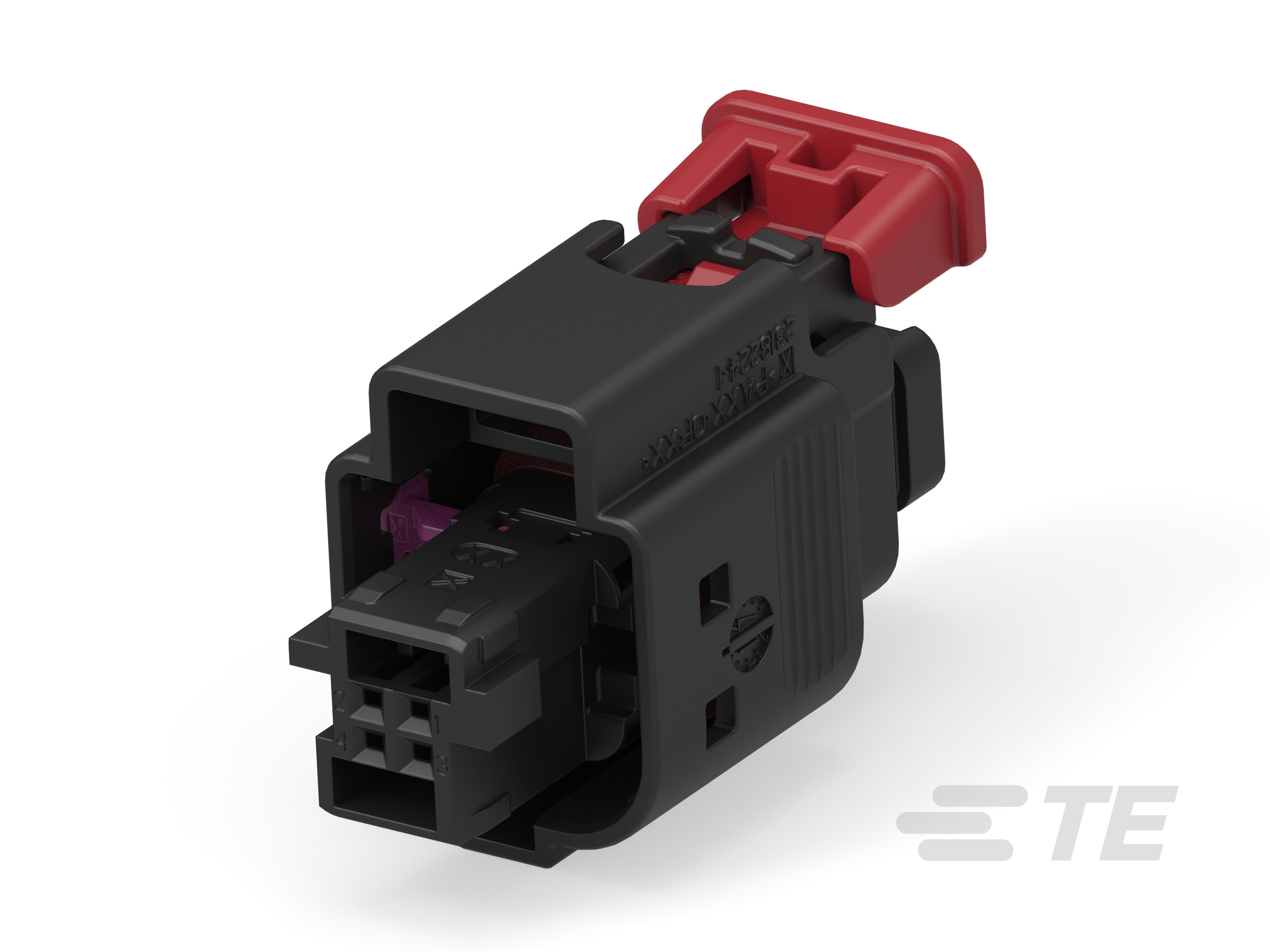

TE Connectivity AMP Connectors 2318200-1	Receptacle	4	Crimp	Free Hanging (In-Line)	-40 °C	150 °C	Terminal Position Lock (TPA)	Female Socket	Black	Latch Holder	0.071 in	2							Glass Filled Nylon 6/6 Polyamide (PA66)	0.059 in
TE Connectivity AMP Connectors 2318300-1
TE Connectivity AMP Connectors 1801823-3	Housing for Female Insert	4	Crimp	Free Hanging (In-Line)	-40 °C	100 °C	Connector Position Assurance (CPA) Sealed	Female Socket	Blue	Latch Holder	0.071 in	1							Nylon Polyamide (PA)
