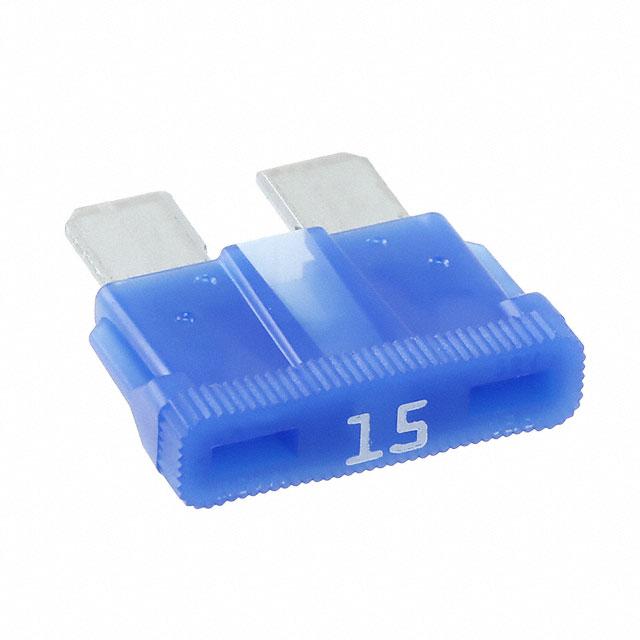

BK/ATC-15
ActiveFUSE, AUTOMOTIVE, FAST ACTING, 15 A, 32 V, 19.1MM X 5MM X 19MM, ATC SERIES

BK/ATC-15
ActiveFUSE, AUTOMOTIVE, FAST ACTING, 15 A, 32 V, 19.1MM X 5MM X 19MM, ATC SERIES
Description
General part information
BK/ATC-15
The BK/ATC-15 is a 15A 32V ATC®-series fast acting Blade Fuse with nylon housing, tin-plated zinc terminals for corrosion resistance and enhanced conductivity, Industry standard color coding for quick identification of ampere rating, this is a halogen-free, features an enclosed element that helps protect against shocks and sparks, plus corrosion resistance for longer service life. Test points on specific part/package numbers may speed up circuit troubleshooting. Meets the needs of extreme environments. UL recognized for use in low voltage control circuits.
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/ATC-15 |
|---|---|
| Approval Agency | UL |
| Breaking Capacity | 1 kA |
| Color | Blue |
| Current Rating | 15 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | ATO/ATC, Blade |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.492 in |
| Size / Dimension Length | 0.76 in |
| Size / Dimension Width | 0.207 in |
| Voltage Rating - DC | 32 V |
