RE09P-SM
ActivePasternack
REANTPATCH 2.4GHZ 8DBI
RE09P-SM
ActivePasternack
REANTPATCH 2.4GHZ 8DBI
Description
General part information
RE09P-SM

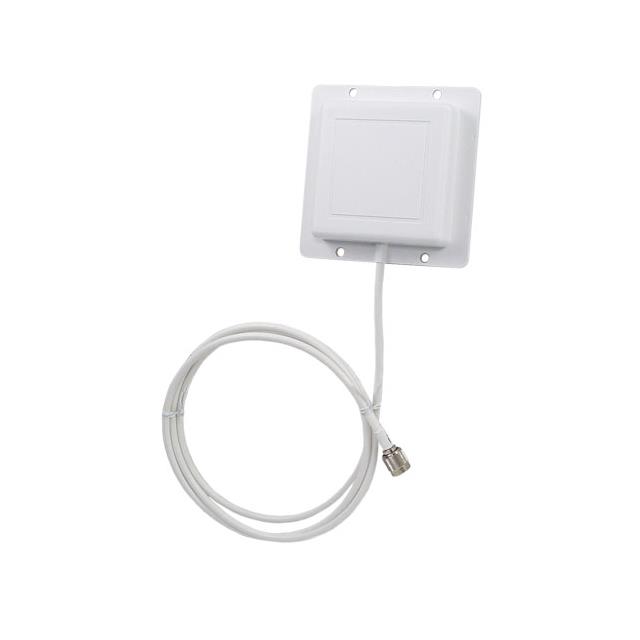

2.45GHz 802.11b/g/n, Bluetooth, ISM, Wi-Fi Flat Patch RF Antenna 2.4GHz ~ 2.5GHz 8dBi Connector Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | RE09P-SM |
|---|---|
| Antenna Type | Flat Patch |
| Applications | 802.11b/g/n, Bluetooth, Wi‑Fi, ISM |
| Features | Cable, 1.2192m |
| Frequency (Center/Band) | 2.45 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 8 dBi |
| Height (Max) | 0.9 in |
| Mounting Type | Through Hole |
| Number of Bands | 1 |
| RF Family/Standard | Bluetooth, WiFi, General ISM |
| Termination | Connector |
| VSWR | 1.5 |
