SR2400
ObsoleteEaton Tripp Lite

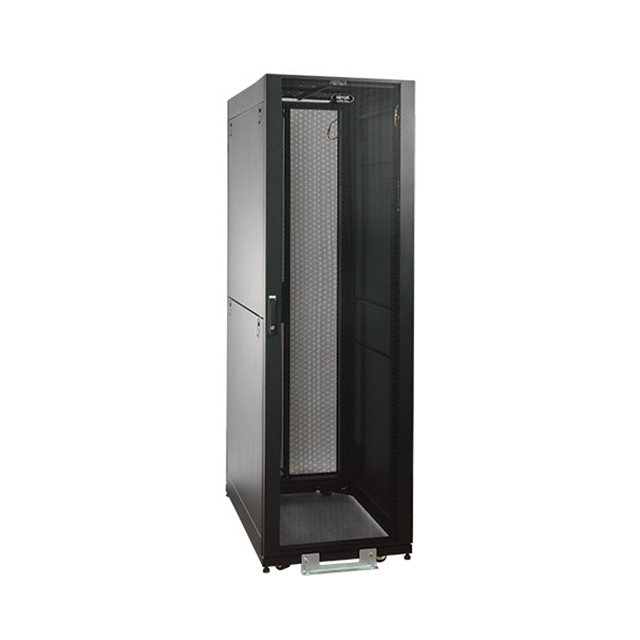

RACK CABINET, 19 INCH, STANDARD DEPTH, SERVER, SMARTRACK SERIES, 42U, 78.5 ", 23.6 ", 43 "
SR2400
ObsoleteEaton Tripp Lite
RACK CABINET, 19 INCH, STANDARD DEPTH, SERVER, SMARTRACK SERIES, 42U, 78.5 ", 23.6 ", 43 "
Description
General part information
SR2400
Metal, Steel Cabinet Rack Enclosed, Bottom, Front, Sides, Top 43.000" L x 23.630" W x 78.500" H (1092.20mm x 600.20mm x 1993.90mm) Black
Technical Specifications
Parameters and characteristics for this part
| Specification | SR2400 |
|---|---|
| Color | Black |
| Dimensions - Overall Height | 78.5 " |
| Dimensions - Overall Length | 43 " |
| Dimensions - Overall Width | 23.63 in |
| Door | Steel |
| Features | Locking, Removable Sides, Cable Entry Systems |
| Material | Metal, Steel |
| Mounting Rails | Two Pair |
| Number of Units | 42 U |
| Panel Height | 73.5 in |
| Panel Length | 37 in |
| Shipping Info | Drop shipped from the Manufacturer's Warehouse |
| Style | Top, Front, Enclosed, Sides, Bottom |
| Type | Cabinet Rack |
| Ventilation | Back, Top, Front |
| Weight | 260 lbs |
