GL2R0KA7B250
ObsoleteKYOCERA AVX
FIXED IND 2UH 250MA 1.45 OHM TH
GL2R0KA7B250
ObsoleteKYOCERA AVX
FIXED IND 2UH 250MA 1.45 OHM TH
Description
General part information
GL2R0KA7B250

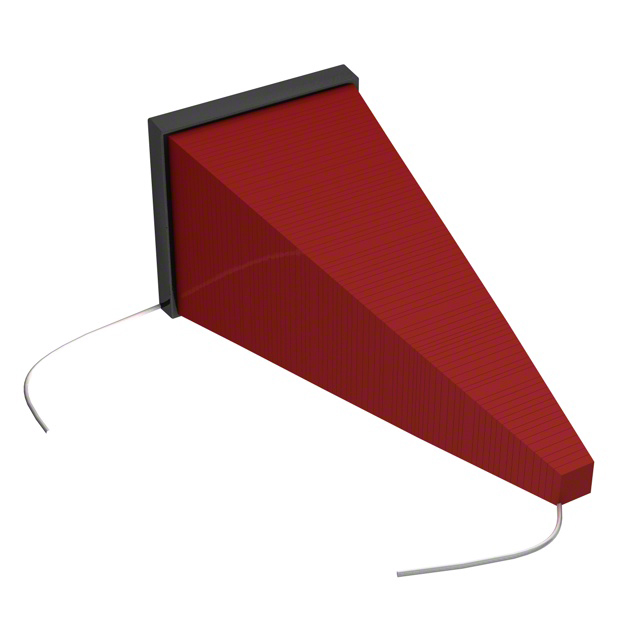

2 µH Unshielded Drum Core, Wirewound Inductor 250 mA 1.45Ohm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | GL2R0KA7B250 |
|---|---|
| Current Rating | 0.25 A |
| DC Resistance (DCR) | 1.45 Ohm |
| Inductance | 2 µH |
| Material - Core | Iron Powder |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.102 in |
| Size / Dimension Shape | Sq Pyramid |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
