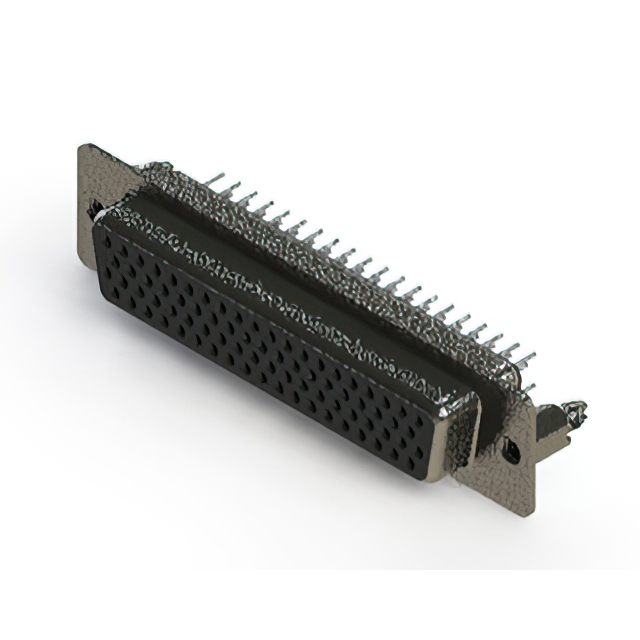

638-078-330-066

Active

EDAC Inc.

D SUBMINIATURE CONNECTOR, 78 CONTACT(S), FEMALE, 0.095 INCH PITCH, SOLDER TERMINAL, #4-40, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

638-078-330-066

Active

EDAC Inc.

D SUBMINIATURE CONNECTOR, 78 CONTACT(S), FEMALE, 0.095 INCH PITCH, SOLDER TERMINAL, #4-40, RECEPTACLE,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	638-078-330-066

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	78
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Termination	Solder

638-078 Series

...

Part	Contact Finish	Flange Feature	Features	Color	Connector Style	Contact Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material Flammability Rating	Current Rating (Amps)	Contact Type	Connector Type	Dielectric Material	Contact Finish Thickness	Shell Material, Finish
EDAC Inc. 638-078-630-269	Gold	Housing/Shell (4-40)	Shielded	Black	D-Sub High Density	Copper Alloy	Through Hole	0.76 Ám	30 Áin	78	-55 °C	125 °C	Solder	UL94 V-0	3 A	Signal	Receptacle Female Sockets	Polyester Thermoplastic
EDAC Inc. 638-078-232-268	Gold	4-40	Shielded	Black	D-Sub High Density	Copper Alloy	Free Hanging (In-Line)			78	-55 °C	125 °C		UL94 V-0	3 A	Signal	Receptacle Female Sockets	Polyester Thermoplastic	Flash
EDAC Inc. 638-078-330-243	Gold	Female Screwlock (4-40) Mating Side	Shielded	Black	D-Sub High Density	Copper Alloy	Through Hole	0.38 µm	15 µin	78	-55 °C	85 °C	Solder	UL94 V-0	3 A	Signal	Receptacle Female Sockets	Polyester Thermoplastic
EDAC Inc. 638-078-631-256	Gold	Housing/Shell (4-40)	Board Lock Shielded	Black	D-Sub High Density	Copper Alloy	Through Hole	0.76 Ám	30 Áin	78	-55 °C	85 °C	Solder	UL94 V-0	3 A	Signal	Receptacle Female Sockets	Polyester Thermoplastic
EDAC Inc. 638-078-331-276	Gold	Housing/Shell (4-40)	Board Lock Shielded	Black	D-Sub High Density	Copper Alloy	Through Hole	0.38 µm	15 µin	78	-55 °C	125 °C	Solder	UL94 V-0	3 A	Signal	Receptacle Female Sockets	Polyester Thermoplastic
EDAC Inc. 638-078-232-047	Gold	Female Screwlock (4-40) Mating Side	Board Lock Shielded	Black	D-Sub High Density	Copper Alloy	Free Hanging (In-Line)			78	-55 °C	85 °C		UL94 V-0	3 A	Signal	Receptacle Female Sockets	Polyester Thermoplastic	Flash	Nickel Plated Steel
EDAC Inc. 638-078-330-067	Gold	Female Screwlock (4-40) Mating Side	Board Lock Shielded	Black	D-Sub High Density	Copper Alloy	Through Hole	0.38 µm	15 µin	78	-55 °C	125 °C	Solder	UL94 V-0	3 A	Signal	Receptacle Female Sockets	Polyester Thermoplastic		Nickel Plated Steel
EDAC Inc. 638-078-331-251	Gold	Housing/Shell (Unthreaded)	Shielded	Black	D-Sub High Density	Copper Alloy	Through Hole	0.38 µm	15 µin	78	-55 °C	85 °C	Solder	UL94 V-0	3 A	Signal	Receptacle Female Sockets	Polyester Thermoplastic
EDAC Inc. 638-078-330-066	Gold	Housing/Shell (4-40)	Board Lock Shielded	Black	D-Sub High Density	Copper Alloy	Through Hole	0.38 µm	15 µin	78	-55 °C	125 °C	Solder	UL94 V-0	3 A	Signal	Receptacle Female Sockets	Polyester Thermoplastic		Nickel Plated Steel
EDAC Inc. 638-078-232-269	Gold	Housing/Shell (4-40)	Shielded	Black	D-Sub High Density	Copper Alloy	Free Hanging (In-Line)			78	-55 °C	125 °C		UL94 V-0	3 A	Signal	Receptacle Female Sockets	Polyester Thermoplastic	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 10.21

Description

General part information

638-078 Series

78 Position D-Sub, High Density Receptacle, Female Sockets Connector

Documents

Technical documentation and resources
