4N47U
ActiveTT Electronics/BI

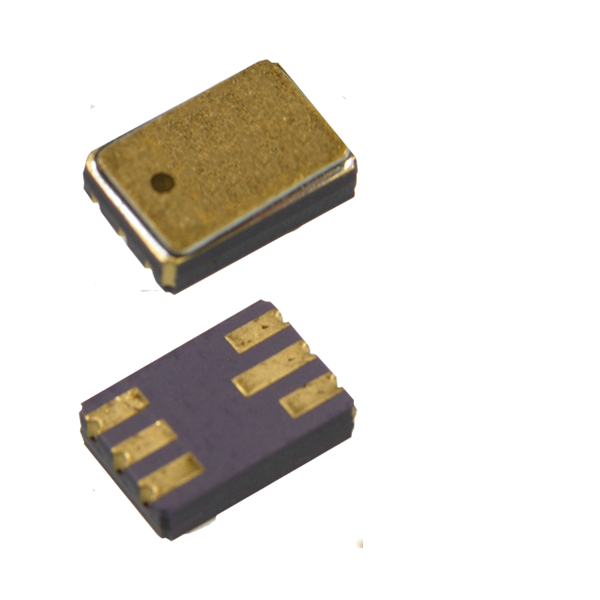

OPTOISO 1KV TRANS W/BASE 6-LCC
4N47U
ActiveTT Electronics/BI
OPTOISO 1KV TRANS W/BASE 6-LCC
Description
General part information
4N47U
OPTOISO 1KV TRANS W/BASE 6-LCC
Technical Specifications
Parameters and characteristics for this part
| Specification | 4N47U |
|---|---|
| Current - DC Forward (If) (Max) | 40 mA |
| Current Transfer Ratio (Min) | 50 % |
| Fall Time (Typ) | 20 µs |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Output Type | Transistor with Base |
| Package / Case | No Lead, 6-SMD |
| Package Length | 6.22 mm |
| Package Name | 6-LCC |
| Package Width | 4.32 mm |
| Rise Time (Typ) | 20 µs |
| Vce Saturation (Max) | 300 mV |
| Voltage - Forward (Vf) (Max) | 1.5 V |
| Voltage - Isolation | 1000 Vrms |
| Voltage - Output (Max) | 45 V |
