Description
General part information
XS630B4PAM12

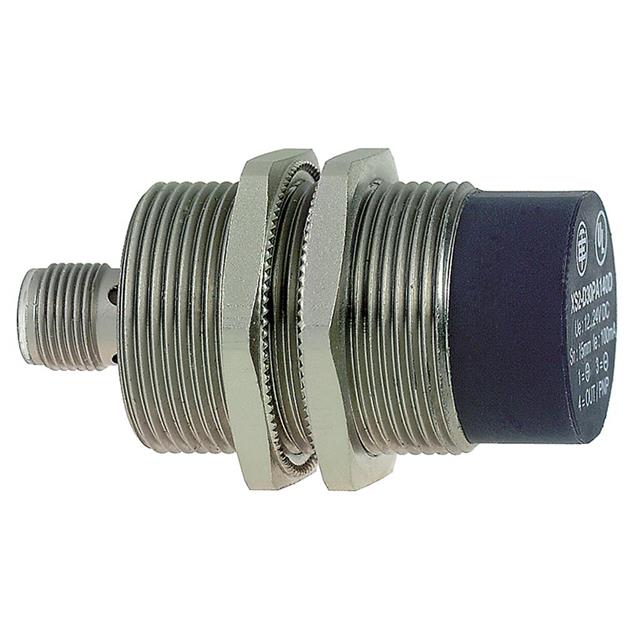

Inductive Proximity Sensor 0.866" (22mm) IP67, IP69K Cylinder, Threaded - M30
Technical Specifications
Parameters and characteristics for this part
| Specification | XS630B4PAM12 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP69K, IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 0.866 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 48 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
