672D476F025CC5D
ActiveVishay Dale
CAPACITOR,47UF,25VDC,10-% TOL,50+% TOL
672D476F025CC5D
ActiveVishay Dale
CAPACITOR,47UF,25VDC,10-% TOL,50+% TOL
Description
General part information
672D476F025CC5D

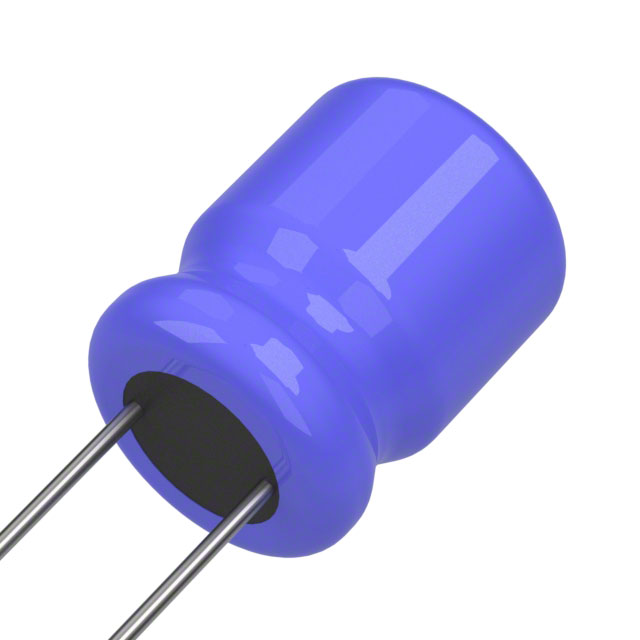

47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2.35Ohm @ 120Hz
Technical Specifications
Parameters and characteristics for this part
| Specification | 672D476F025CC5D |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 µF |
| ESR (Equivalent Series Resistance) | 2.35 Ohm |
| Height - Seated (Max) | 0.63 in |
| Impedance | 850 mOhm |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 400 mA, 280 mA |
| Size / Dimension Diameter | 0.394 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 25 VAC |
