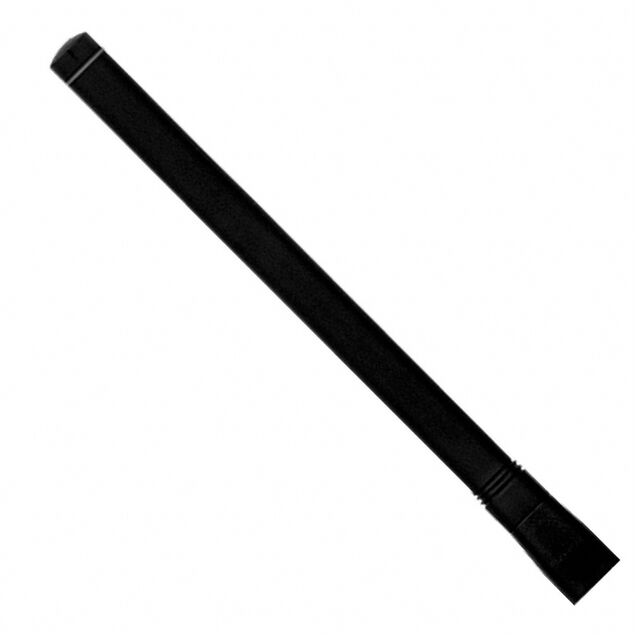

Specification	ANT-315-CW-HW

Antenna Type	Straight, Whip
Applications	Alarms, Remote Control, Security Systems, ISM
Frequency (Center/Band)	315 MHz
Frequency Group	UHF
Frequency Group Maximum (UHF)	1 GHz
Frequency Group Minimum (UHF)	300 MHz
Frequency Range (Max)	325 MHz
Frequency Range (Min)	304 MHz
Gain	0 dBi
Height (Max)	4.724 in
Mounting Type	Connector Mount
Number of Bands	1
RF Family/Standard	General ISM
Termination Type	RP-SMA Male
VSWR	2

ANT-315 Series

Part	Frequency Range (Max)	Frequency Range (Min)	Frequency Group Maximum (UHF)	Frequency Group	Frequency Group Minimum (UHF)	Number of Bands	Antenna Type	VSWR	Termination	Height (Max)	Frequency (Center/Band)	Mounting Type	Applications	RF Family/Standard	Termination Type	Gain
TE Connectivity AMP Connectors ANT-315-SP	317 MHz	312 MHz	1 GHz	UHF	300 MHz	1	Chip	1.9	Solder	0.059 in	315 MHz	Surface Mount	Alarms ISM Remote Control Security Systems	General ISM
TE Connectivity AMP Connectors ANT-315-CW-HD	320 MHz	310 MHz	1 GHz	UHF	300 MHz	1	Straight Whip	2		4.606 in	315 MHz	Connector Mount	Alarms ISM Remote Control Security Systems	General ISM	RP-SMA Male
TE Connectivity AMP Connectors ANT-315-PW-LP	318 MHz	312 MHz	1 GHz	UHF	300 MHz	1	Straight Whip	1.9	Screw-Mount	1.988 in	315 MHz	Panel Mount	Alarms ISM Remote Control Security Systems	General ISM		-4 dBi
TE Connectivity AMP Connectors ANT-315-HETH	325 MHz	305 MHz	1 GHz	UHF	300 MHz	1	Helical	2	Solder	0.35 in	315 MHz	Through Hole	Alarms ISM Remote Control Security Systems	General ISM
TE Connectivity AMP Connectors ANT-315-CW-HWR-SMA	325 MHz	305 MHz	1 GHz	UHF	300 MHz	1	Tilt Whip	2		5.591 in	315 MHz	Connector Mount	Alarms ISM Remote Control Security Systems	General ISM	SMA Male	0 dBi
TE Connectivity AMP Connectors ANT-315-PW-RA	319 MHz	311 MHz	1 GHz	UHF	300 MHz	1	Tilt Whip	2	Screw-Mount	5.18 in	315 MHz	Panel Mount	Alarms ISM Remote Control Security Systems	General ISM
TE Connectivity AMP Connectors ANT-315-CW-RCS	320 MHz	310 MHz	1 GHz	UHF	300 MHz	1	Right Angle Whip	2		2.106 in	315 MHz	Connector Mount	Alarms ISM Remote Control Security Systems	General ISM	RP-SMA Male
TE Connectivity AMP Connectors ANT-315-CW-RH-SMA	320 MHz	310 MHz	1 GHz	UHF	300 MHz	1	Straight Whip	1.9		2.008 in	315 MHz	Connector Mount	Alarms ISM Remote Control Security Systems	General ISM	SMA Male
TE Connectivity AMP Connectors ANT-315-CW-RH	320 MHz	310 MHz	1 GHz	UHF	300 MHz	1	Straight Whip	1.9		2.008 in	315 MHz	Connector Mount	Alarms ISM Remote Control Security Systems	General ISM	RP-SMA Male
TE Connectivity AMP Connectors ANT-315-CW-HWR-RPS	325 MHz	305 MHz	1 GHz	UHF	300 MHz	1	Tilt Whip	2		5.591 in	315 MHz	Connector Mount	Alarms ISM Remote Control Security Systems	General ISM	RP-SMA Male	0 dBi
