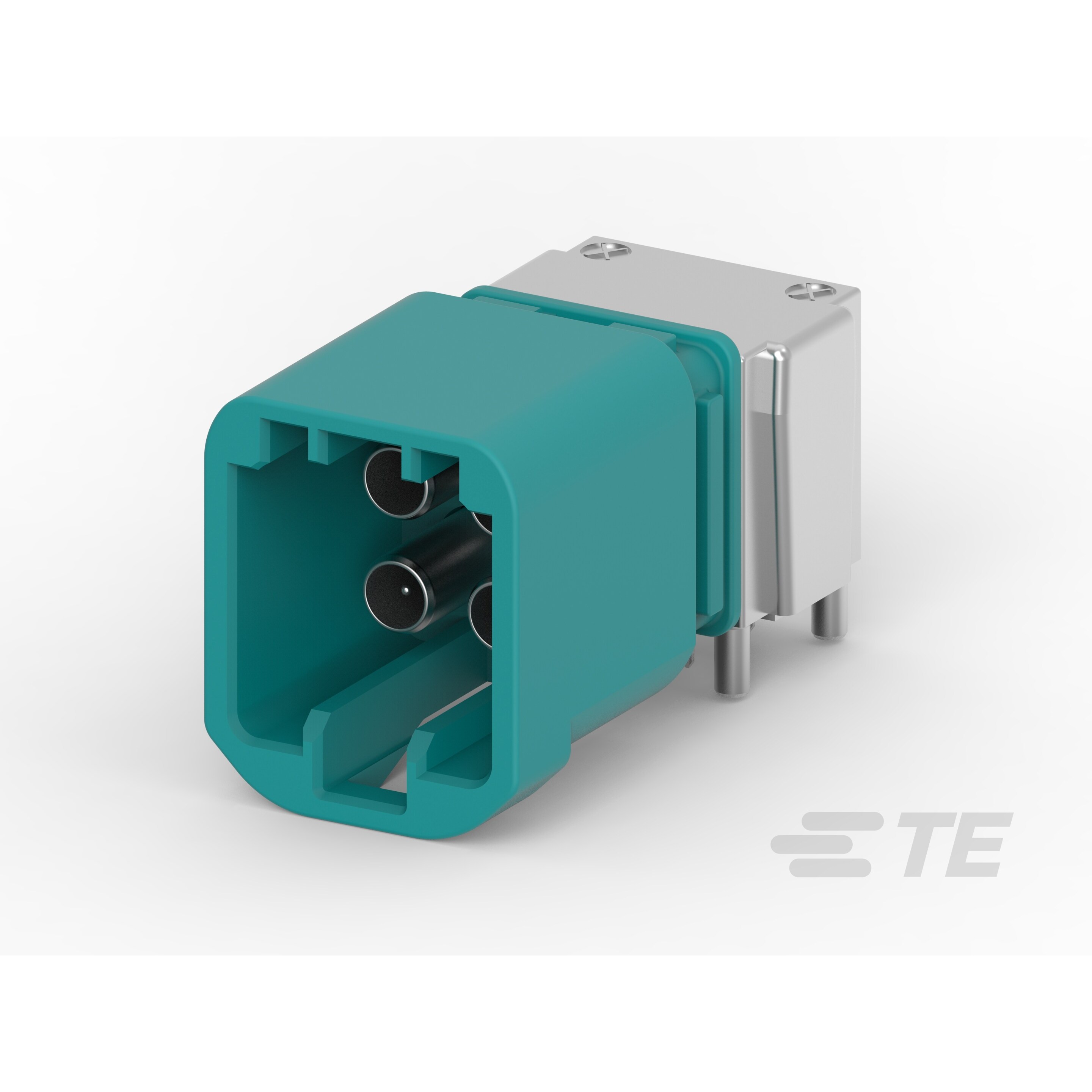

1-2304168-4

1-2304168-4

Active
TE Connectivity AMP Connectors

4P MATE-AX, HDR ASSY REV.,90 DEG,COD D

Find alt
1-2304168-4

1-2304168-4

Active
TE Connectivity AMP Connectors

4P MATE-AX, HDR ASSY REV.,90 DEG,COD D

Find alt

Description

General part information

1-2304168-4

Wire-to-Board, Shielded, Horizontal, 4 Position, Board Mount, A Code, 4 mm [.157 in] Centerline, Signal, MATE-AX, Data Connectivity Headers

Technical Specifications

Parameters and characteristics for this part

Specification1-2304168-4
Center Contact MaterialPhosphor Bronze
Connector StyleMiniature Coaxial, Quadraxial, Fakra
Connector TypeMale Pin, Plug
Contact TerminationSolder
Fastening TypeLatch Lock
FeaturesCode D
Frequency - Max9 GHz
Housing ColorViolet, Claret
Impedance50 Ohm
Mounting TypeThrough Hole, Right Angle
Number of Ports1
Shield TerminationSolder
