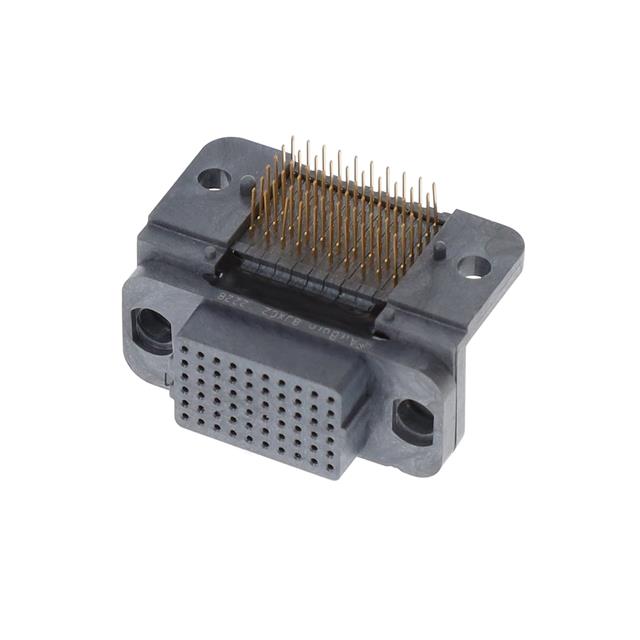

VSRAF-06-10-50-04-G
ActiveAirBorn, a Molex company
HIGH SPEED / HIGH DENSITY CONNEC
VSRAF-06-10-50-04-G
ActiveAirBorn, a Molex company
HIGH SPEED / HIGH DENSITY CONNEC
Description
General part information
VSRAF-06-10-50-04-G
60 Connector Receptacle, Female Sockets Through Hole, Right Angle Black High Speed
Technical Specifications
Parameters and characteristics for this part
| Specification | VSRAF-06-10-50-04-G |
|---|---|
| Color | Black |
| Connector Style | High Speed |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Current Rating | 2 A |
| Features | Board Guide, Jackscrew Socket |
| Mounting Type | Through Hole, Right Angle |
| Number of Columns | 10 |
| Number of Positions | 60 |
| Number of Positions Loaded | All |
| Number of Rows | 6 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.05 in |
| Termination | Solder |
| Voltage Rating | 200 VDC |
