AXG3B0602A
ObsoletePanasonic Electronic Components

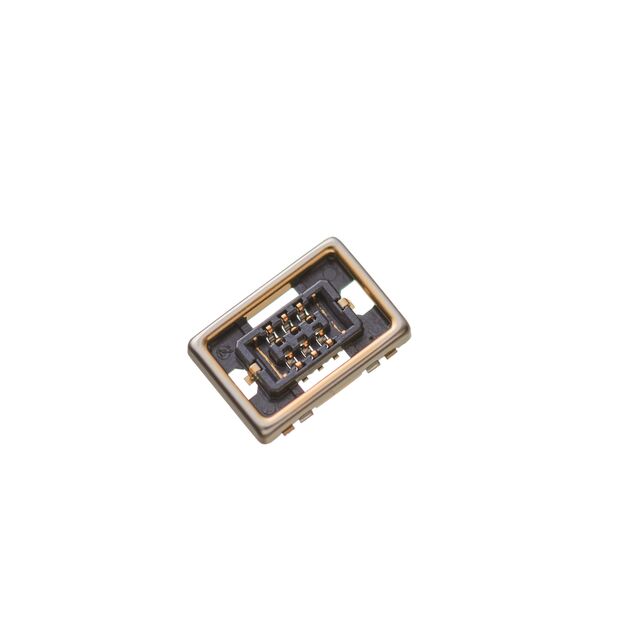

RF4 SOCKET, 6 PIN
AXG3B0602A
ObsoletePanasonic Electronic Components
RF4 SOCKET, 6 PIN
Description
General part information
AXG3B0602A
6 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | AXG3B0602A |
|---|---|
| Connector Type | Center Strip Contacts, Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.94 µin |
| Height Above Board | 0.022 in |
| Mated Stacking Height | 0.65 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Pitch | 0.014 in |
