L-1500SA2250-0390XF
ActiveOrbel Corporation

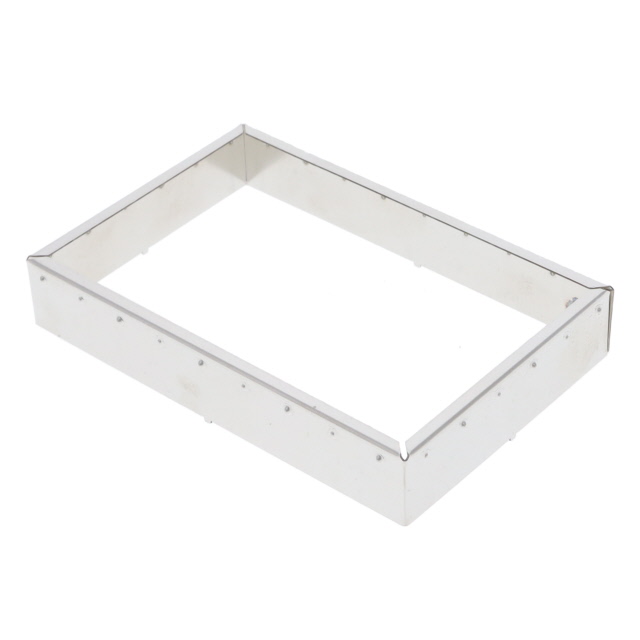

RF SHIELD 1.500" X 2.250" FRAME
L-1500SA2250-0390XF
ActiveOrbel Corporation
RF SHIELD 1.500" X 2.250" FRAME
Description
General part information
L-1500SA2250-0390XF
RF Shield Shield, 2-Piece 1.500" (38.10mm) X 2.250" (57.15mm) Non-Vented Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | L-1500SA2250-0390XF |
|---|---|
| Height - Overall | 0.39 in |
| Length - Overall | 2.25 in |
| Mounting Type | Surface Mount |
| Type | 2-Piece, Shield |
| Ventilation | Non-Vented |
| Width - Overall | 1.5 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
