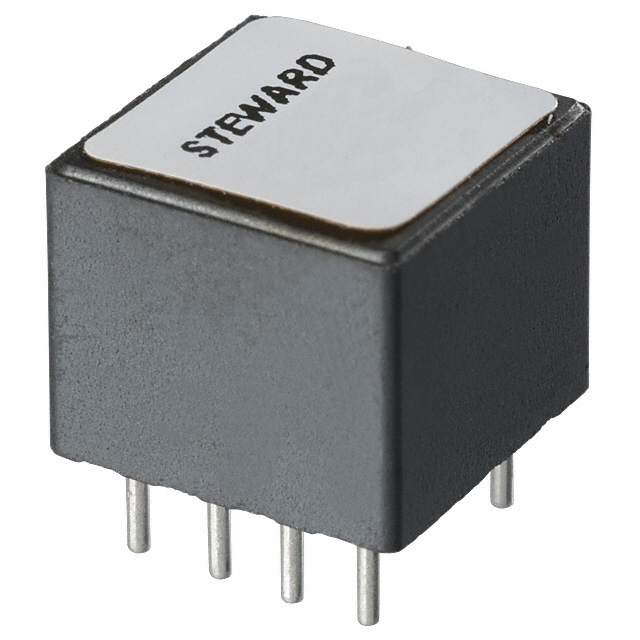

CM4545Z131B-10
ActiveLaird Technologies EMI
CMC 10A 4LN 130 OHM TH
CM4545Z131B-10
ActiveLaird Technologies EMI
CMC 10A 4LN 130 OHM TH
Description
General part information
CM4545Z131B-10
4 Line Common Mode Choke Through Hole 130 Ohms @ 100 MHz 10A DCR 10mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM4545Z131B-10 |
|---|---|
| Current Rating (Max) | 10 A |
| DC Resistance (DCR) (Max) | 10 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.374 in |
| Impedance | 130 Ohms |
| Mounting Type | Through Hole |
| Number of Lines | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical |
| Package Leads | 8 PC Pin |
| Package Name | Vertical |
| Pad Count | 8 PC Pin |
| Pin Count | 8 |
| Size / Dimension Length | 0.448 in |
| Size / Dimension Width | 0.448 in |
