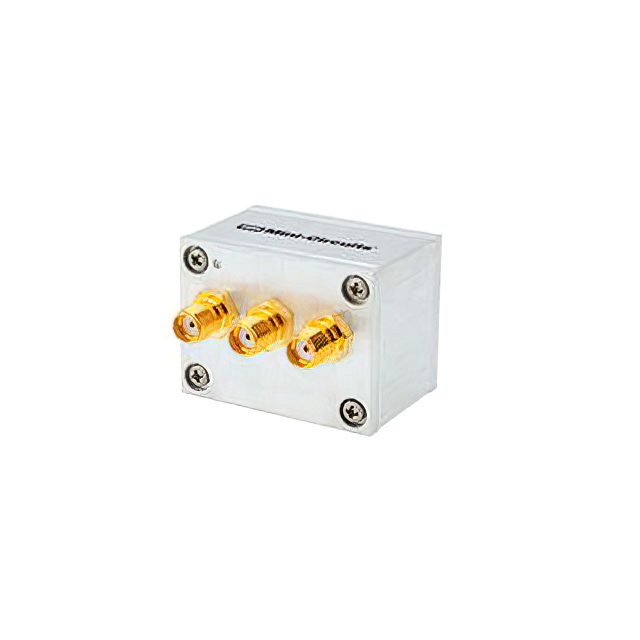

ZMSC-2-1+
ActiveMini-Circuits
PWR SPLTR CMBD / SMA / ROHS
ZMSC-2-1+
ActiveMini-Circuits
PWR SPLTR CMBD / SMA / ROHS
Description
General part information
ZMSC-2-1+
RF Power Divider 100 kHz ~ 400 MHz Isolation (Min) 20dB, 4° Imbalance (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | ZMSC-2-1+ |
|---|---|
| Frequency (Max) | 400 MHz |
| Frequency (Min) | 100 kHz |
| Imbalance (Max) | 4 ° |
| Insertion Loss | 0.6 dB |
| Isolation (Min) | 20 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 1 in |
| Size / Dimension Length | 1.5 in |
| Size / Dimension Width | 1.13 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
