83319E 009500

Active

Belden Inc.

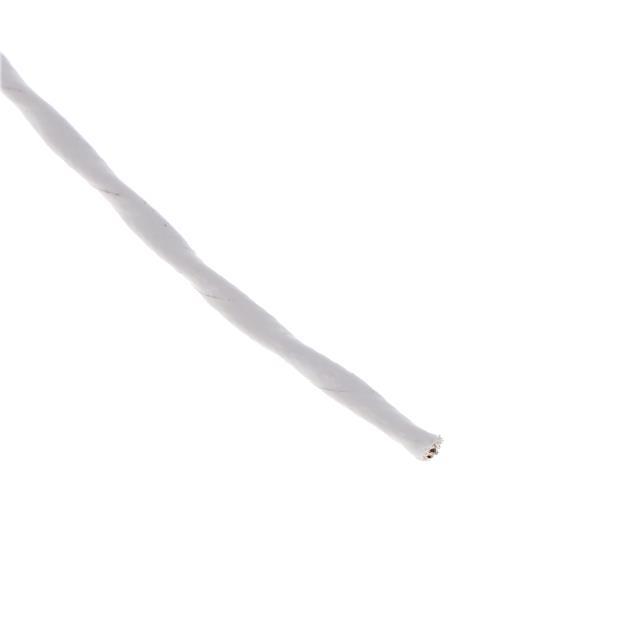

CABLE 2CON 22AWG WHT SHLD 500'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2CON 22AWG WHT SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	83319E 009500

Cable Type	Multi-Conductor
Conductor Insulation	Tetrafluoroethylene (TFE)
Conductor Material	Copper, Silver Coated
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Jacket (Insulation) Diameter [diameter]	3.63 mm
Jacket (Insulation) Diameter [diameter]	0.143 in
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.279 mm
Jacket (Insulation) Thickness	0.011 in
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Shield Coverage	85 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Wire Gauge	22 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Number of Conductors	Shield Coverage	Shield Type	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Wire Gauge	Conductor Insulation	Length	Length
Belden Inc. 83319E 009500	3.63 mm	0.143 in	500 '	152.4 m	Tetrafluoroethylene (TFE)	19 Strands	34 AWG	-65 ░C	200 °C	Copper Silver Coated	2	85 %	Braid	Multi-Conductor	0.279 mm	0.011 in	Copper Silver Coated	22 AWG	Tetrafluoroethylene (TFE)
Belden Inc. 83319E 0091000	3.63 mm	0.143 in			Tetrafluoroethylene (TFE)	19 Strands	34 AWG	-65 ░C	200 °C	Copper Silver Coated	2	85 %	Braid	Multi-Conductor	0.279 mm	0.011 in	Copper Silver Coated	22 AWG	Tetrafluoroethylene (TFE)	1000 ft	304.8 m
Belden Inc. 83319E 009100	3.63 mm	0.143 in	100 ft	30.5 m	Tetrafluoroethylene (TFE)	19 Strands	34 AWG	-65 ░C	200 °C	Copper Silver Coated	2	85 %	Braid	Multi-Conductor	0.279 mm	0.011 in	Copper Silver Coated	22 AWG	Fluorinated Ethylene-Propylene (FEP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair) Conductor Multi-Conductor Cable White 22 AWG Braid 500.0' (152.4m)
