Description
General part information

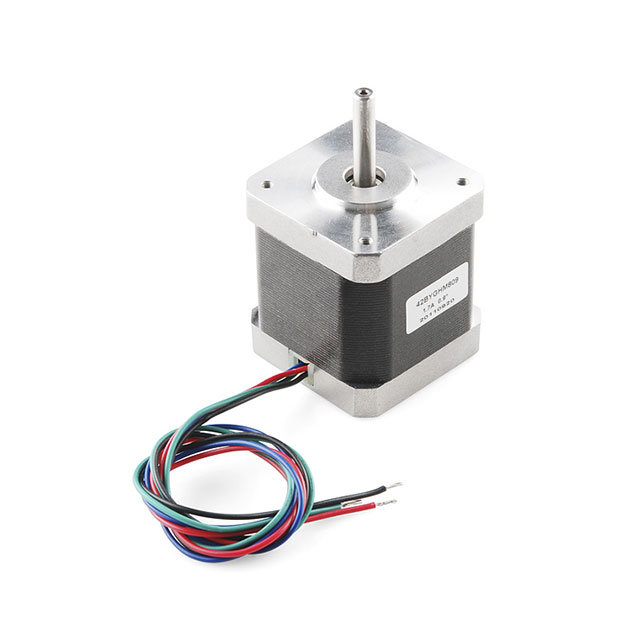

ROB-10846
Bipolar Stepper Motor Hybrid Frame Size 17 400.0 Step 1.7 A 3VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | ROB-10846 |
|---|---|
| Coil Resistance | 1.8 Ohms |
| Coil Type | Bipolar |
| Current Rating | 1.7 A |
| Diameter - Shaft | 0.197 in |
| Features | Round Shaft |
| Length - Shaft and Bearing | 0.945 in |
| Mounting Hole Spacing | 1.22 in |
| NEMA Frame Size | 17 |
| Size / Dimension Length | 1.665 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 1.665 in |
| Step Angle | 0.9 ° |
| Steps per Revolution | 400 steps |
| Termination Style | Wire Leads |
| Torque - Holding (mNm) | 480 mNm |
| Torque - Holding (oz-in) | 67.97 oz-in |
| Type | Hybrid |
| Voltage - Rated | 3 VDC |
