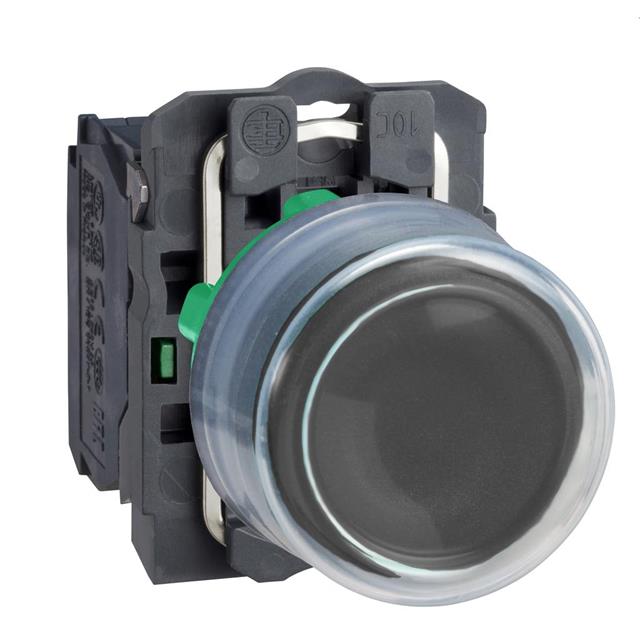

Specification	XB5AP21

Actuator Type	Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating	550 mA, 6 A
Electrical Life (Cycles)	1000000 Cycles
Ingress Protection Description	Dust Tight, Waterproof, Water Resistant
Ingress Protection IP Rating	IP67, IP66
Mechanical Life (Cycles)	10000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Panel Cutout Diameter	22 mm
Panel Cutout Shape	Circular
Switch Function	On-Off
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	125 V

XB5 Series

Part	Number of Rows	Number of Ports	Orientation	Termination	Number of Positions	Connector Type	Number of Contacts	Tab Direction	Shielding	Mounting Type	Ingress Protection	LED Color	Termination Style	Voltage Rating - DC	Panel Cutout Diameter	Panel Cutout Shape	Actuator Type	Type	Ingress Protection Description	Ingress Protection IP Rating	Switch Function	Operating Temperature (Min)	Operating Temperature (Max)	Illumination Voltage (Nominal)	Voltage Rating - AC	Illumination Type	Color	Current Rating	Circuit	Color - Actuator/Cap	Mechanical Life (Cycles)	Electrical Life (Cycles)	Removable Positions	Angle of Throw	Contact Material	Illumination	Illumination Voltage (Nominal) (Maximum)	Illumination Voltage (Nominal) (Minimum)	Lens Color	Voltage	Lens Style	Current	Ratings	Panel Cutout Dimension	Lens Diameter
SCHNEIDER ELECTRIC XB5PRJ45	1	1	Straight	Solder	8	Ethernet Jack RJ45	8	Up	Unshielded	Panel Mount	IP20	Does Not Contain LED
SCHNEIDER ELECTRIC XB5AW36B5										Front Panel Mount			Screw Terminal	125 V	22 mm	Circular	Button Flush Round	Illuminated Standard	Dust Tight Water Resistant Waterproof	IP66 IP67 IP69 IP69K	Off-On On-Off	-40 °C	70 °C	24 V	120 V	LED	Blue	6 A 550 mA	DPST-NO/NC	Blue	10000000 Cycles	1000000 Cycles
SCHNEIDER ELECTRIC XB5AW3465										Front Panel Mount			Screw Terminal	125 V	22 mm	Circular	Button Flush Round	Illuminated Standard	Dust Tight Water Resistant	IP66	Off-On On-Off	-40 °C	70 °C	250 V	120 V	LED	Red	6 A 550 mA	DPST-NO/NC	Red	10000000 Cycles	1000000 Cycles
SCHNEIDER ELECTRIC XB5FG21					2					Panel Mount			Screw Terminal	125 V	30 mm	Circular	Flat Key				Off-On	-40 °C	70 °C		120 V			6 A 550 mA	SPST-NO				Left Right	90 °	Silver Alloy
SCHNEIDER ELECTRIC XB5FJ33					3					Panel Mount			Screw Terminal	125 V	30.5 mm	Circular		Standard	Dust Tight Water Resistant Waterproof	IP66 IP67 IP69 IP69K	Off-On	-40 °C	70 °C		120 V			6 A 550 mA	DPST-NO							Non-Illuminated
SCHNEIDER ELECTRIC XB5AP51										Front Panel Mount			Screw Terminal	125 V	22 mm	Circular	Button Round	Standard	Dust Tight Water Resistant	IP66	Off-Mom	-40 °C	70 °C		120 V			6 A 550 mA	SPST-NO	Yellow
SCHNEIDER ELECTRIC XB5FG41					2					Panel Mount			Screw Terminal	125 V	30 mm	Circular	Flat Key				Off-On	-40 °C	70 °C		120 V			6 A 550 mA	SPST-NO				Left Right	90 °	Silver Alloy
SCHNEIDER ELECTRIC XB5AW3345										Front Panel Mount			Screw Terminal	125 V	22 mm	Circular	Button Flush Round	Illuminated Standard	Dust Tight Water Resistant	IP66	Off-On On-Off	-40 °C	70 °C		120 V	LED	Green	6 A 550 mA	DPST-NO/NC	Green	10000000 Cycles	1000000 Cycles					240 VAC	220 VAC
SCHNEIDER ELECTRIC XB5AVB5											13 IP66 IP67 IP69 IP69K NEMA 4X		Screw Terminal			Round		LED																					Orange	24 V	Convex Top Round	18 mA	AC DC	0.87 "	30 mm
SCHNEIDER ELECTRIC XB5FA61										Front Panel Mount			Screw Terminal	125 V	30.5 mm	Circular	Button Flush Round	Standard	Dust Tight Water Resistant Waterproof	IP66 IP67 IP69 IP69K	Off-On	-40 °C	70 °C		120 V			6 A 550 mA	SPST-NO	Blue	10000000 Cycles	1000000 Cycles
